Retractable Bollards

Medium security parking and access control bollard

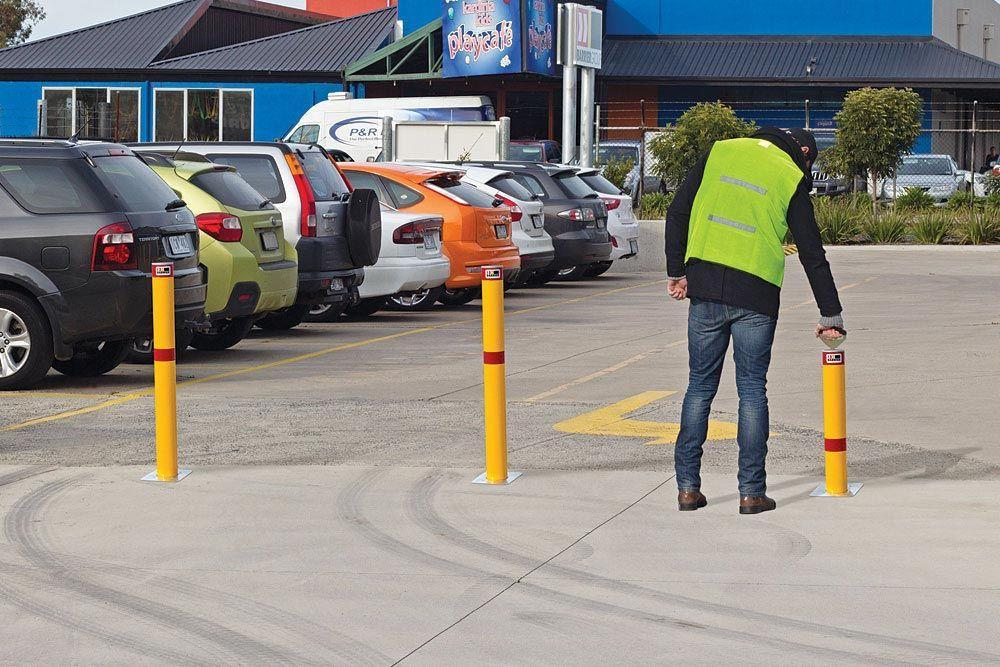

Retractable bollards are designed for medium security applications such as traffic and parking control. They offer a simple, trouble free operation proven over many years of installation.

The retractable bollard is now available with a choice of two different materials. The BR900 has a 5mm thick mild steel bollard that is galvanised before being powder coated in hi-vis safety yellow with two reflective bands. The BR900-SS has a 3.05mm thick 316 marine grade stainless steel bollard. As this model is designed for more architectural applications it does not include reflective bands.

Note: A retractable bollard should not be used where high security locking is required, such as car yards etc. For these applications insurance companies insist on our Cam-lok Removable Bollards.


Technical Specifications

Description: Retractable bollard for vehicle access and parking control
Material: Bollards 90mm diameter with 5mm mild steel or 3.05mm 316 stainless steel wall. In ground casing 140mm with 5mm wall mild steel.
Finish: Hot dip galvanised with powder coated finish or marine grade 316 stainless steel. In-ground casings for all models are hot dip galvanised.
Height: 900mm above ground.
1150mm below ground.
Weight: BR900 – 41.5kgs, Operating 12.5kgs.
BR900-SS – 38kgs, Operating 8.8kgs.
Locking: Unique internal locking mechanism with ‘T’ handle key.
Installation: Excavation and concrete footing.

Part Numbers

Use these part numbers when enquiring about this product

PART No. DESCRIPTION
BR900 Retractable bollard assembly – Galvanised and powder coated
BR900R Replacement bollard – Galvanised and powder coated
BR900-SS Retractable bollard assembly – 316 stainless steel
BR900R-SS Replacement bollard – 316 stainless steel
BRKEY-P Additional ‘T’ handle key for retractable bollard

Related Articles

Features

  • Round 90mm diameter bollard locks in both extended and retracted positions.

  • Mild steel hot dip galvanised with a powder coated finish or 316 marine grade stainless steel.

  • Galvanised in-ground casing.

  • Black anti-slip top surface and two reflective bands on powder coated model.

  • Two unique, low cost ‘T’ handle keys supplied per order with additional keys available for purchase.

  • Trouble free design with only two moving parts.

  • Internal locking system can’t be tampered with or fouled by dirt or water.
