Bump Rail

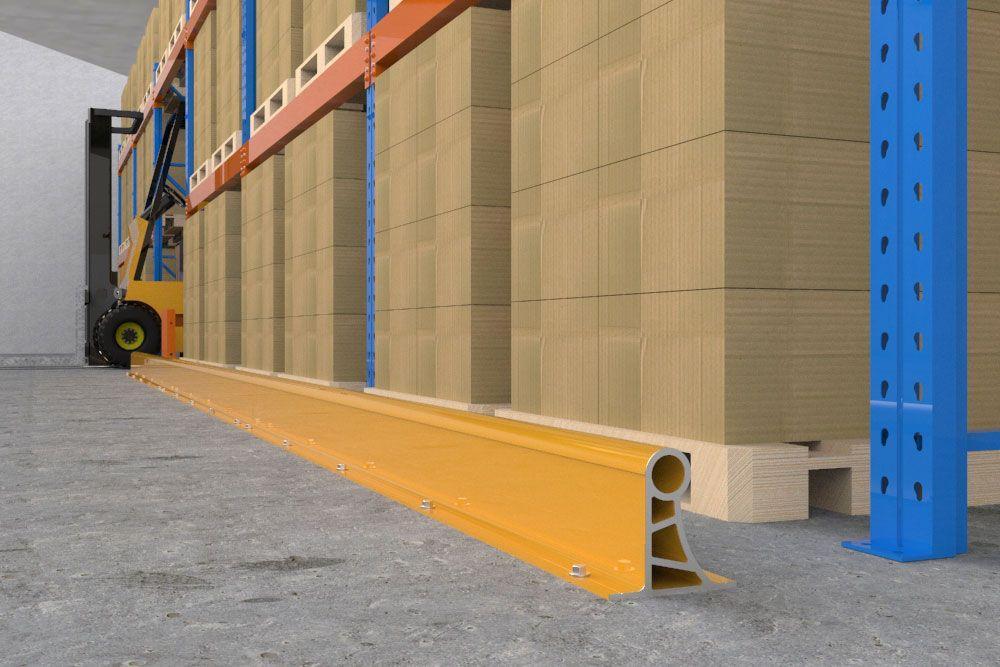

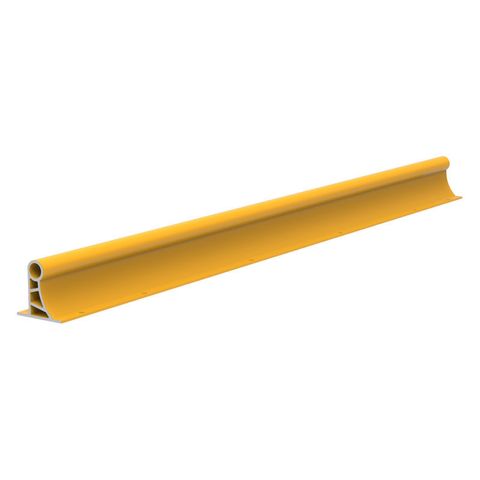

Bump Rail is a high strength aluminium extrusion that weighs less than half the equivalent steel profile per lineal metre. Designed with a dual personality, Bump Rail can be used as an asset protection railing when used flat side toward the impact. In this instance the flat face offers maximum resistance to wayward forklifts absorbing any impact across the entire reinforced face.

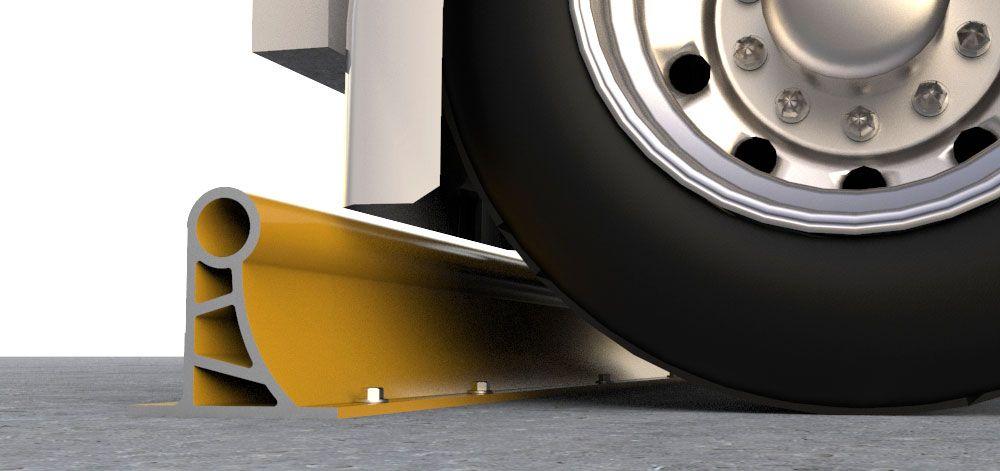

Alternatively, when faced with the curved side to an impact Bump Rail is designed for use as a truck or machinery wheel stop, the rounded top and curved face offering a higher contact point for the vehicle wheels. At 2400mm long it is the right width for most trucks. Fixing points at either end have been strategically positioned at the point of impact 275mm apart to ensure maximum hold-down.
-
Bump Rail
1 to 3 of 3 results1 to 3 of 3 results -
Description: Super heavy duty aluminium bump stop Construction: 8mm thick aluminium extrusion
Installation: Pre-drilled fixing holes Dimensions: 165 x 165 x 8mm x 2.4 metres long Total weight: 34kgs per 2.4 metre length Finish: Safety yellow powder coat -
