Pilot Mounting

Pilot Mounting Options

From sleek stainless steel Fixed In-floor posts to highly portable one-metre traffic cones and everything in between, there’s a Pilot Mounting Option to suit every situation.

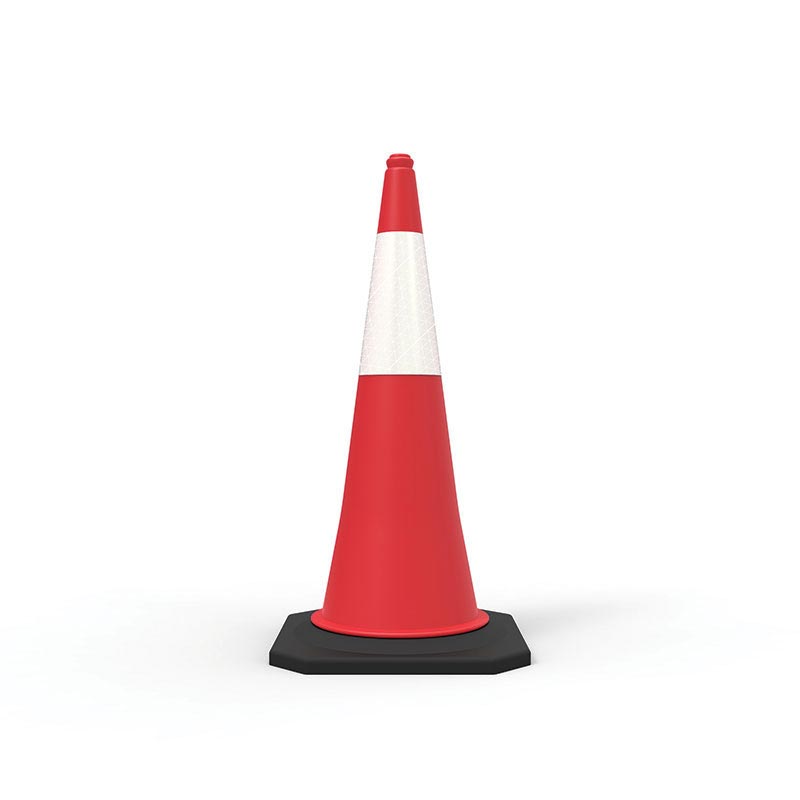

  • Pilot 1 Metre Cones

    Standard 1 metre traffic cones, with a rubber base and reflective collar, weigh 6.4kg. Available in Red or Yellow and accept any Pilot accessories fitted with cone adaptors. We recommend the use of additional rubber 5.3kgs base weights in windy conditions.

    Pilot 1 Metre Cones

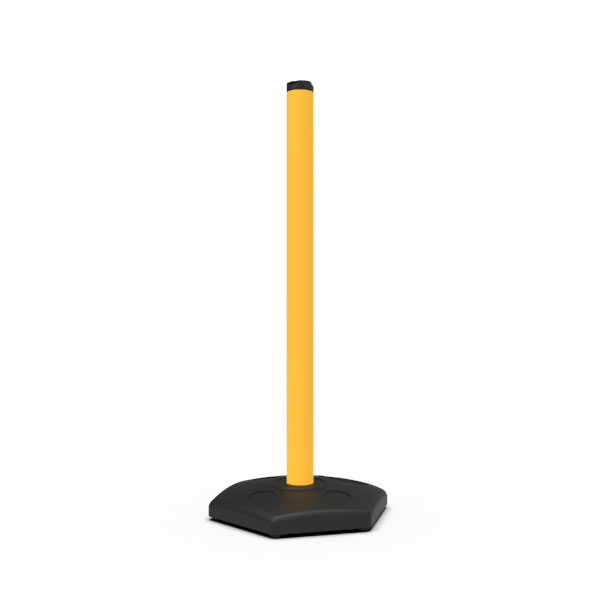

  • Hi-Line Post & Base

    An 8.7kg moulded rubber base and 63mm diameter Yellow UPVC post provide stability and durability. The post includes a Twist-lok receiver to accept the Pilot belt unit and accessories.

    Hi-line Post and Base

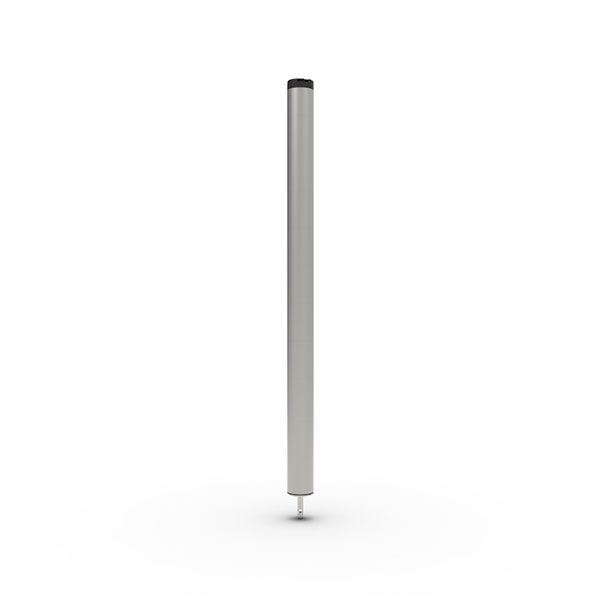

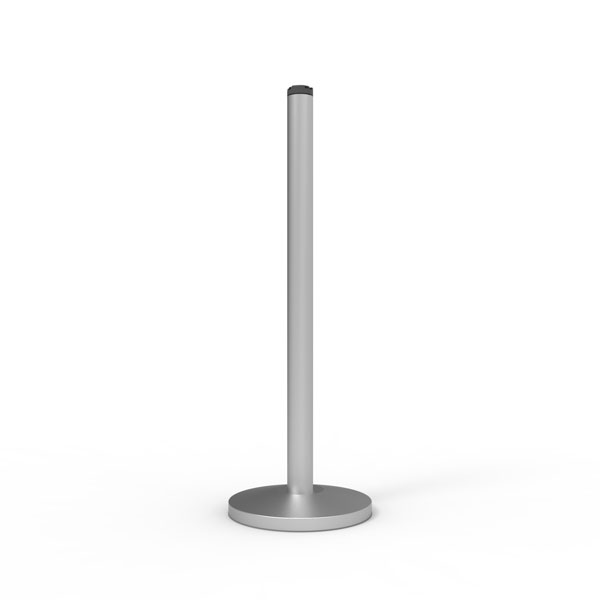

  • Pilot Removable In-Floor Post

    Pilot removable in-floor posts are available in either polished stainless steel or durable UPVC plastic. The 63mm posts use a pin and socket design that allows them to be quickly deployed and removed without tools, leaving the floor clear of potential tripping hazards.

    Removable In-floor Post for Pilot - Stainless Steel

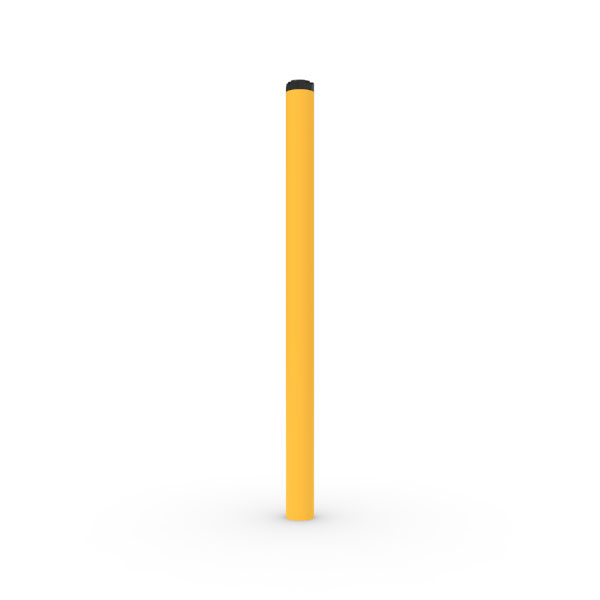

  • Pilot Fixed In-Floor Post

    Pilot fixed in-floor posts are available in durable UPVC plastic. The 63mm posts utilise an aluminium slip post design that allows them to rotate smoothly for belt alignment while reducing the risk of unauthorised removal.

    Fixed In-floor Post for Pilot - PVC

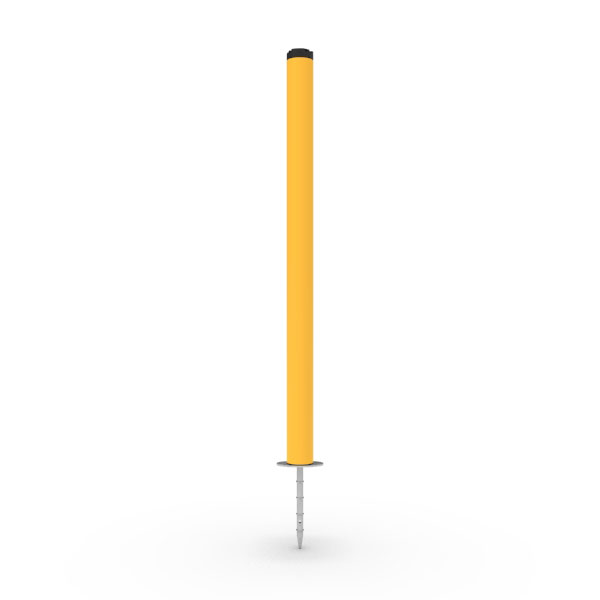

  • Pilot Removable Spike Post

    Pilot removable spike posts are available in durable UPVC plastic only. The 63mm posts use a 200mm long galvanised steel spike that allows them to be quickly deployed using foot pressure and removed again when necessary. Use in grassed or soft gravel areas for temporary applications.

    Pilot Removable 960mm Spike Post - PVC

Got a wind problem? Let the Co-Pilot take care of it.

The biggest problem with long reach belt barriers used outside is wind.

Slide 1
Includes
20kg
Cast Iron Base
Optional
10kg
Additional Base Weights
Maximum
40kg
Co-Pilot Base Weight

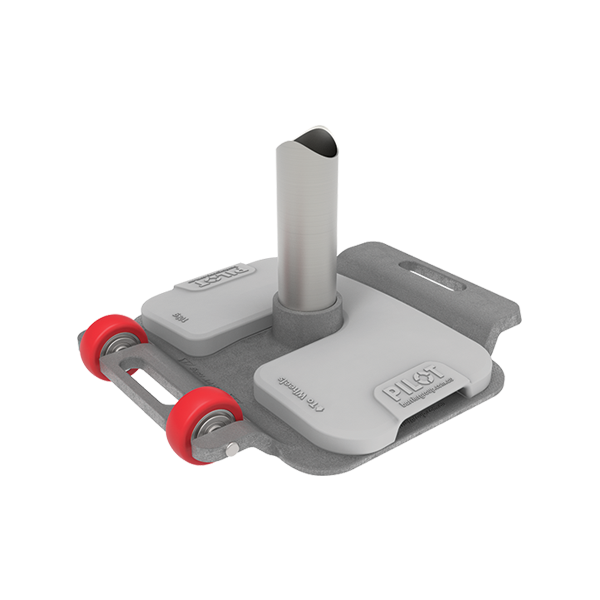

With its 20kg cast iron base and stainless steel post, Co-Pilot provides stability and mobility, while the 75mm non-marking polyurethane wheels and pozi-grip handle make positioning as simple as tilt and walk. If necessary, stability can be increased even further through the addition of optional 10kg base weights (P/No. PILOT-BW10). Up to two base weights at 10kgs each can be added bringing the total weight of the Co-pilot base up to 40kgs. Base weights can be added or removed at any time without the need for tools.

What’s included with your Co-Pilot purchase:

  • 20kg base with ball-bearing polyurethane wheels
  • Cast-in lifting handles on base
  • Stainless steel post with pozi-grip handle
  • Post top accessory mounting adaptor
  • Twist-lok versatility to accept Pilot accessories
  • 20kg Cast Base

    A cast iron base for maximum stability. Highly recommended for windy applications.

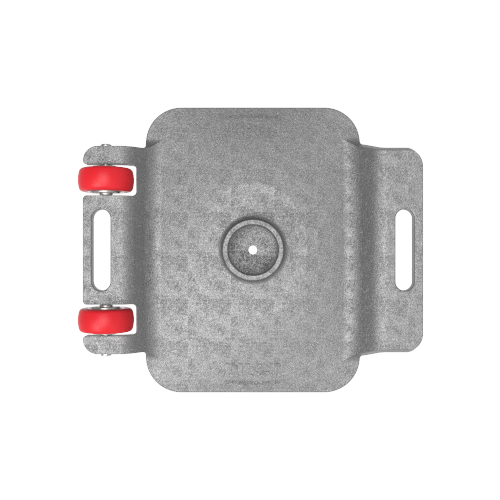

  • Lifting Handles

    Two cast-in handles make lifting Co-Pilot safe and easy to lift.

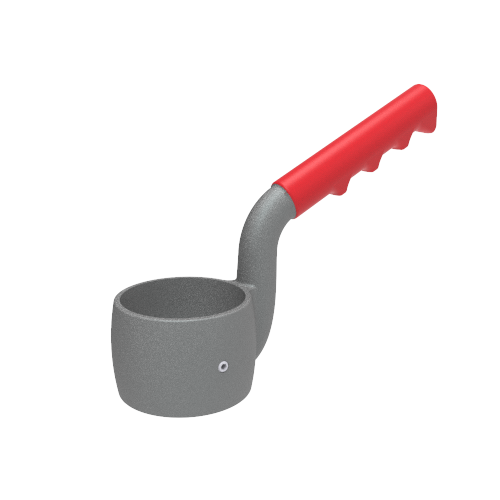

  • Pozi-grip Handle

    Makes relocating as easy as tilt and walk.

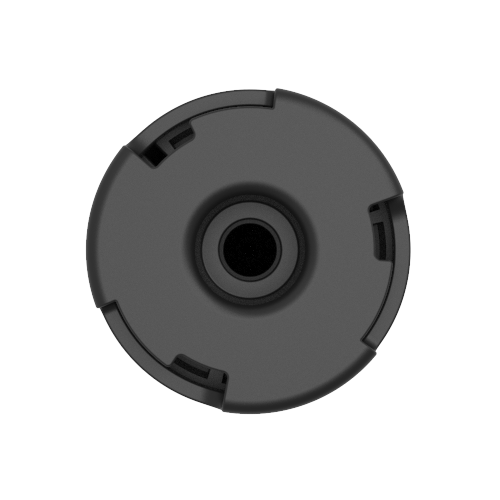

  • Twist-lok Versatility

    Post mount adaptor allows for simple attachment and removal of Pilot accessories.

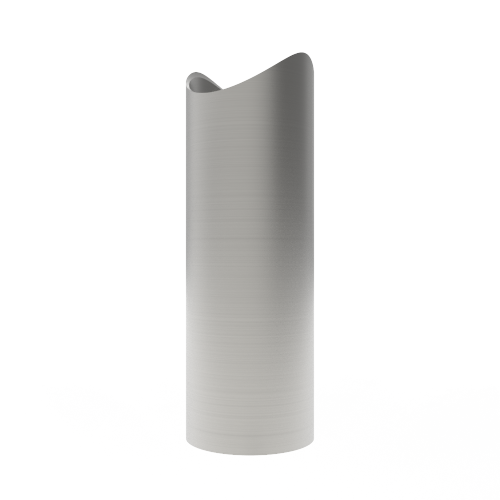

  • Stainless Steel Post

    The 1.5mm thick 304 grade stainless steel post provides durability in extreme environments.

  • Ball Bearing Wheels

    Non-marking polyurethane wheels with sealed bearing are smooth and silent.

360º View

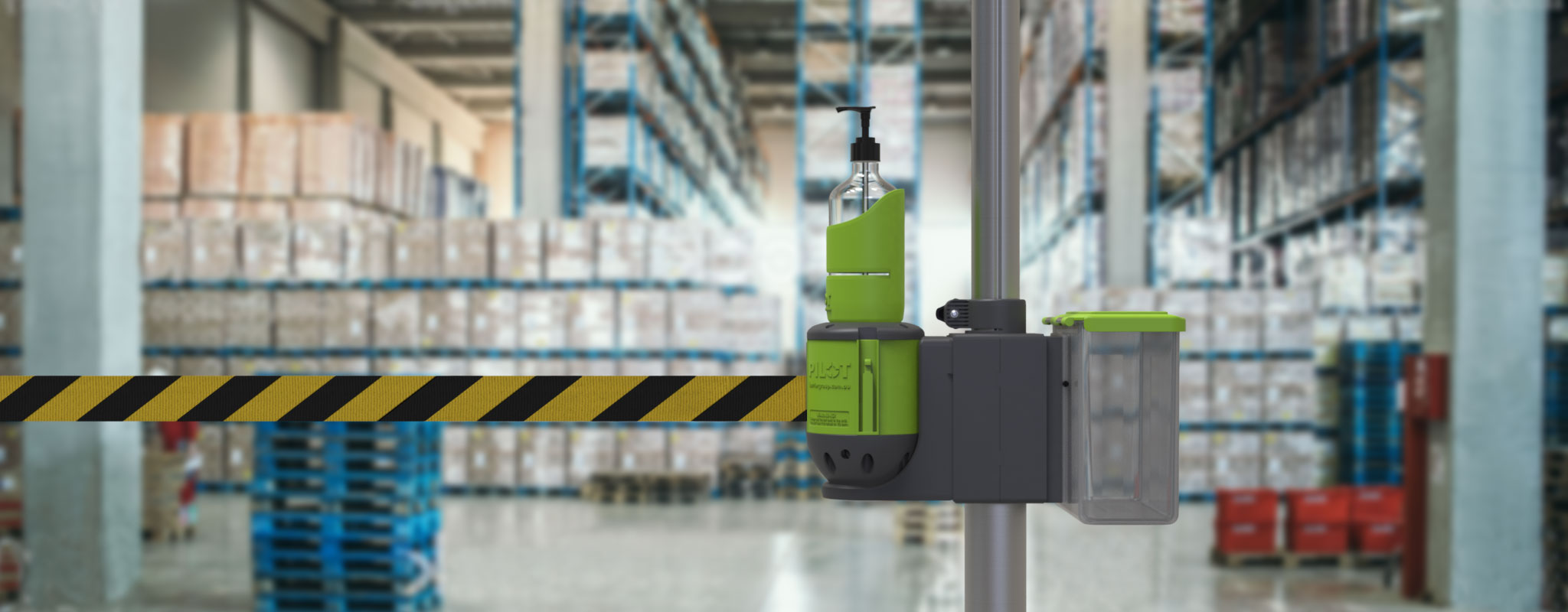

Pilot Multi-Post – Whatever you want it to be!

Up to
700mm
Vertical Extension
Maximum
2000mm
Vertical Height

The telescopic post is mounted to a mobile 20kg cast iron base that can extend 700mm from 1300mm to 2000mm or be locked anywhere between. Compatible with all the accessories shown below, Multi-Post can be configured in numerous ways using the included accessory mountings. In outdoor or windy conditions the stability of Multi-Post can be increased through the addition of optional 10kg base weights (P/No. PILOT-BW10). Up to two base weights at 10kgs each can be added bringing the total weight of the Multi-Post base to 40kgs. The weights can be added or removed at anytime without the need for tools.

Sample Combinations:

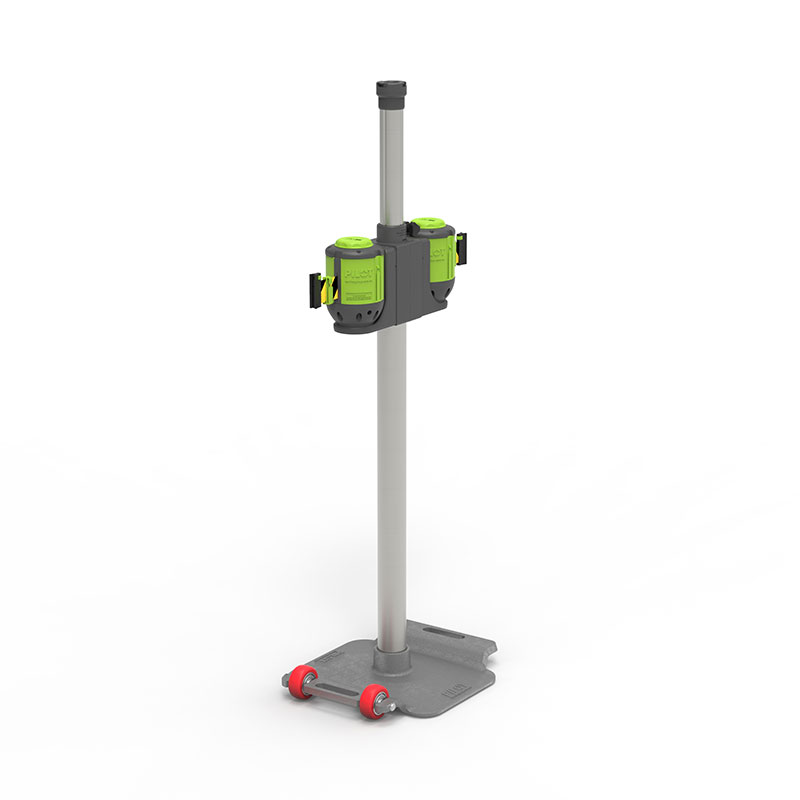

  • 01 Multi-Post-+-2-Pilots

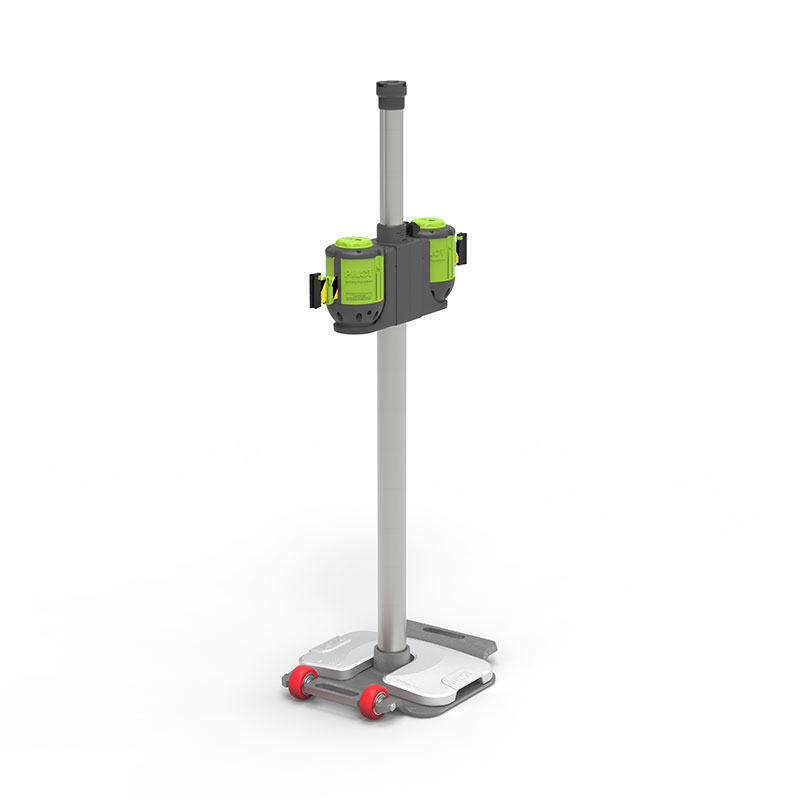

  • 02 Multi-Post-+-Base-weight-+-2-Pilots

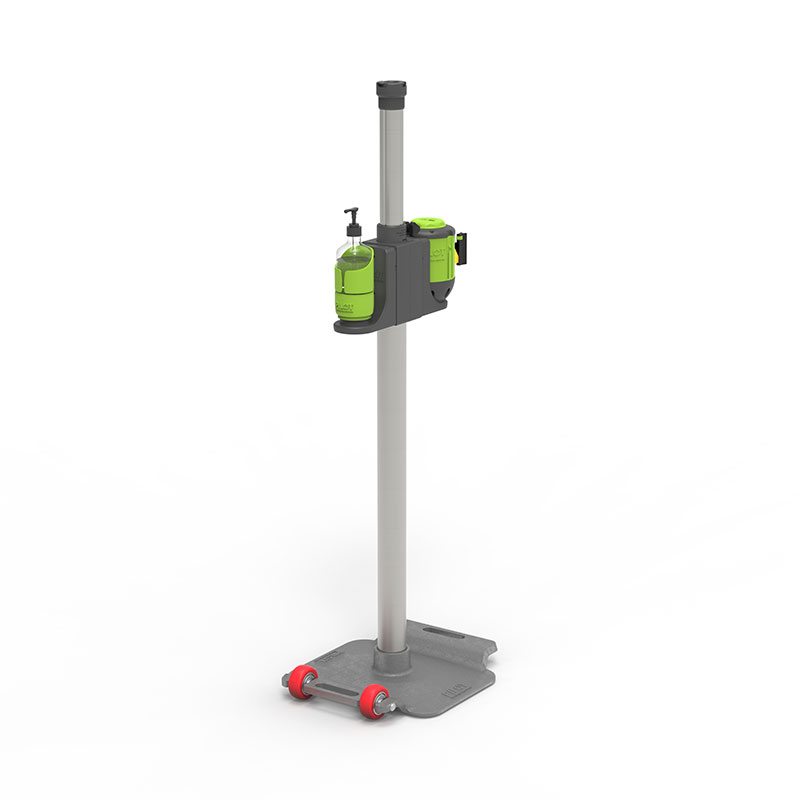

  • 03 Multi-Post-+-Pilot-+-Bottle

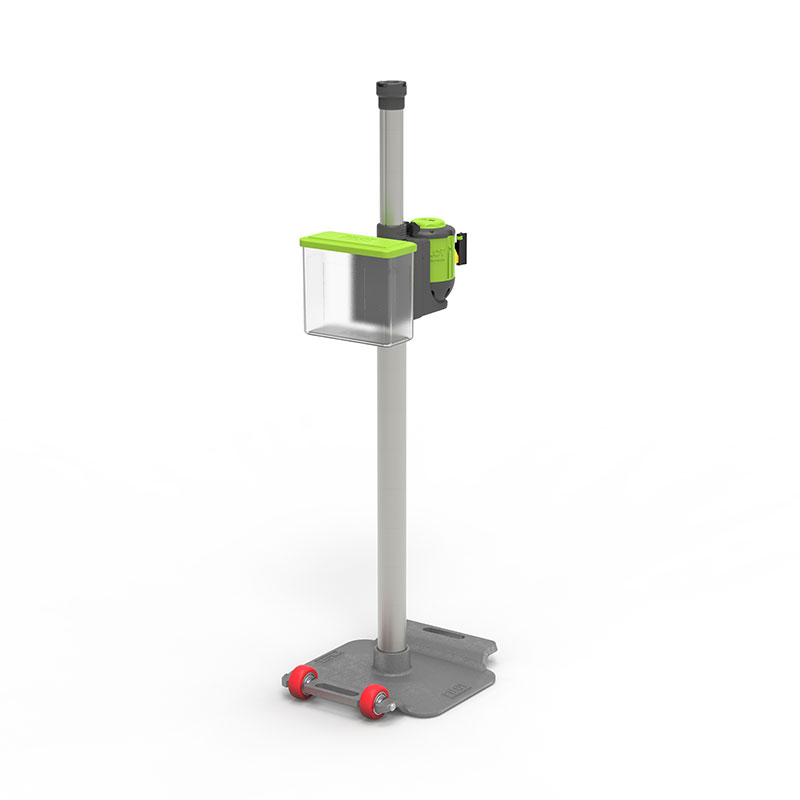

  • 04 Multi-Post-+-Pilot-+-Caddy

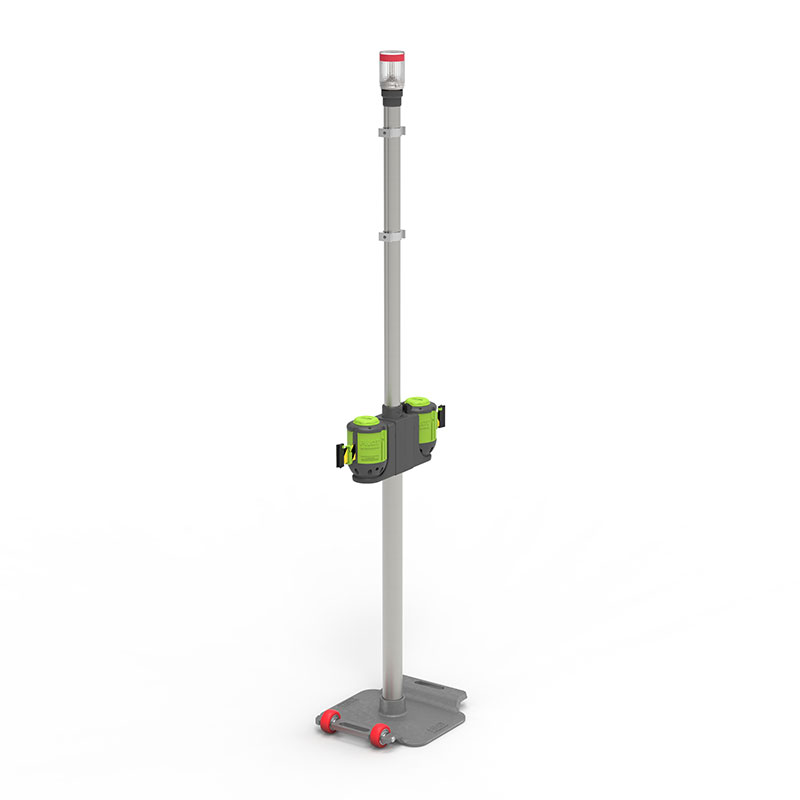

  • Multi-Post-+-2-Pilot-+-Light

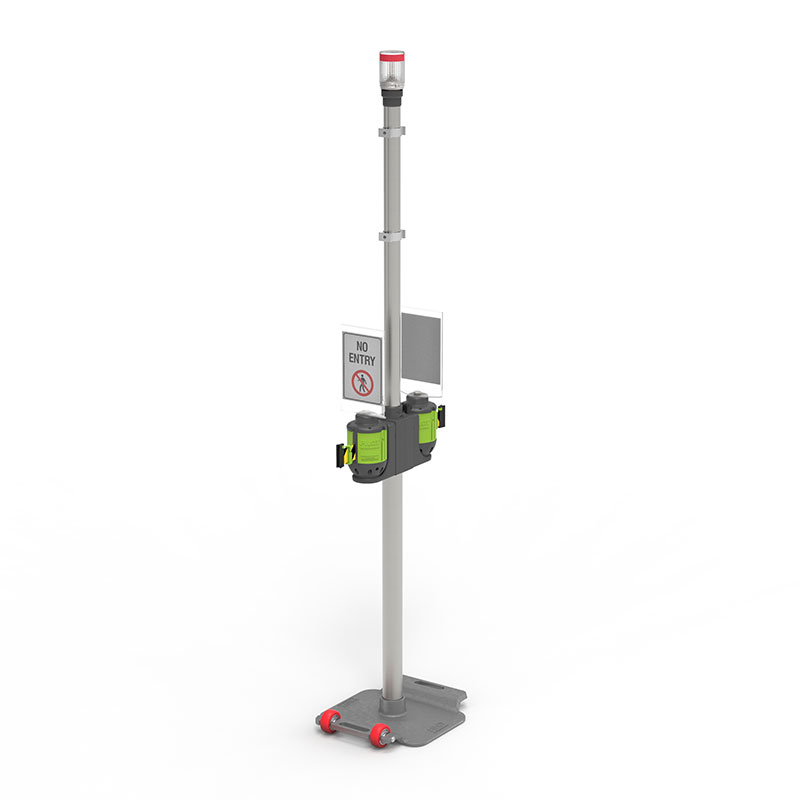

  • Multi-Post-+-2-Pilots-+-2-A5-Pilot-Sign-+-Light
  • Multi-Post-+-Base-Weight-+-Caddy-+-Pilot-+-Bottle-+-2-Signs-+-Light

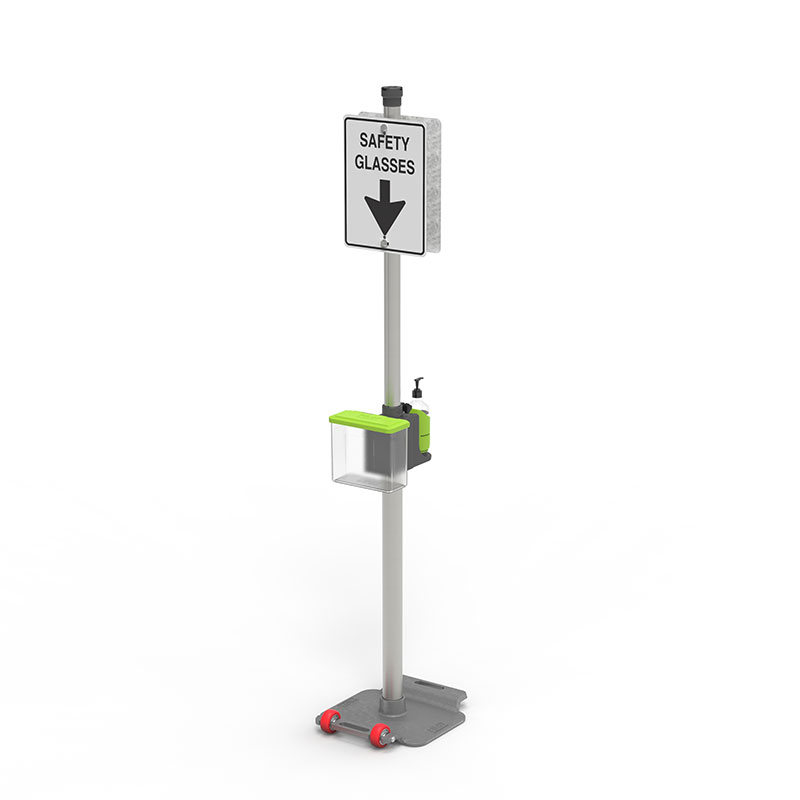

  • Multi-Post-+-Caddy-+-Bottle-+-2-Signs

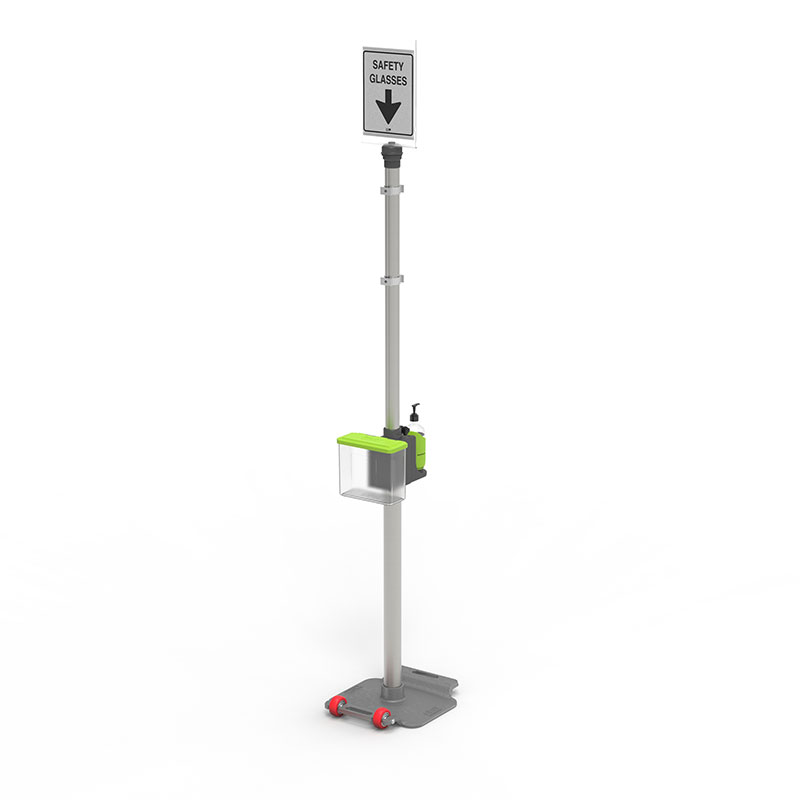

  • Multi-Post-+-Caddy-+-Bottle-+-A4-holder

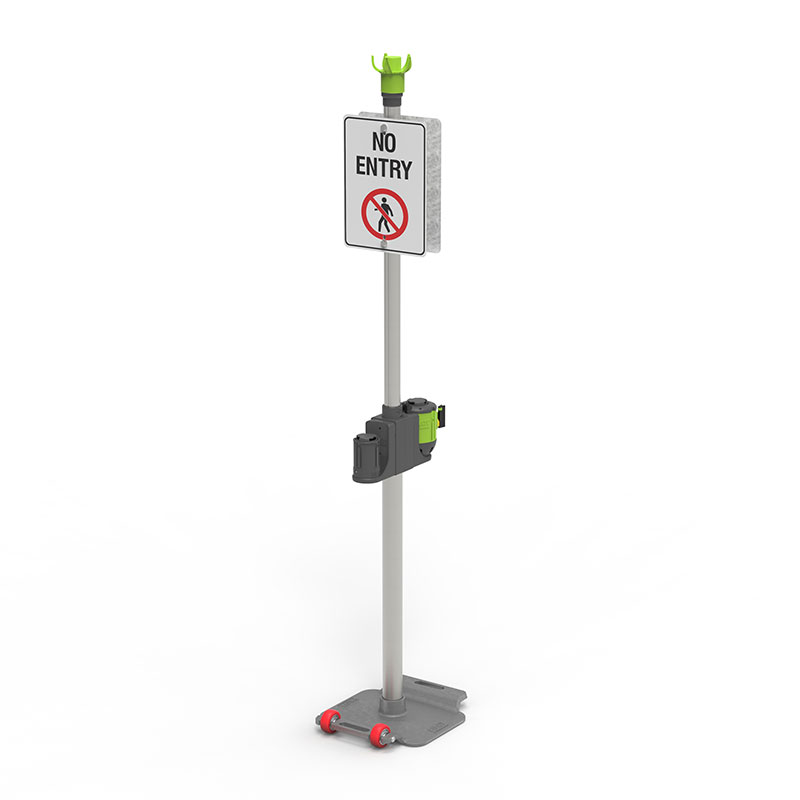

  • Multi-Post-+-Pilot-+-4-Way-Receiver-+-H5-+-2-Signs

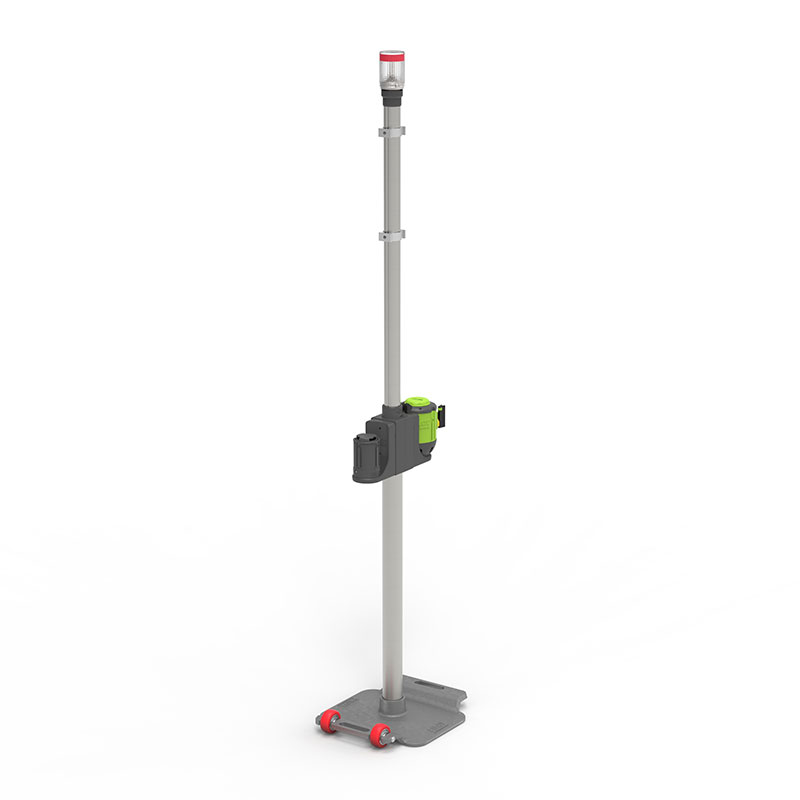

  • Multi-Post-+-Pilot-+-4-Way-Receiver-+-Light.812

What’s included with your Multi-Post purchase:

  • 20kg base with ball-bearing polyurethane wheels
  • Telescopic post – 1300 to 2000mm
  • Mid-level accessory mounting adaptor
  • Telescopic post locking clamp
  • Aluminium double sided sign brackets (2)
  • Post top accessory mounting adaptor
  • 20kg Cast Base

    A cast iron base for maximum stability. Highly recommended for windy applications.

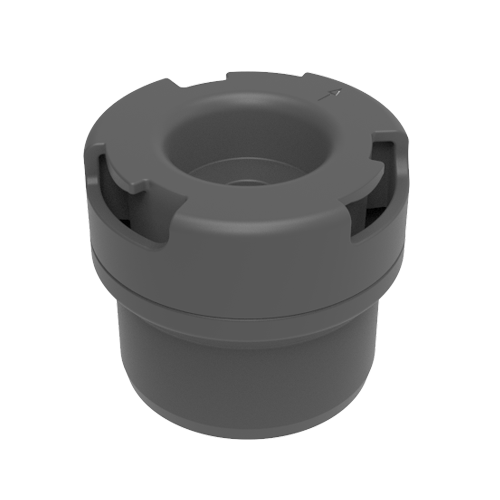

  • Post Mount Adaptor

    This Twist-lok adaptor sits at the very top of Multi-Post and accepts Pilot light and Pilot sign holders.

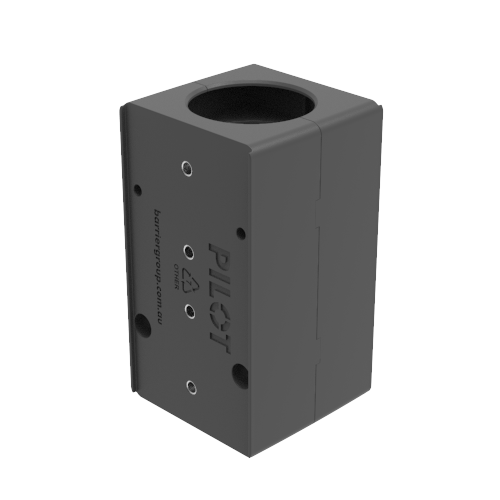

  • Accessory Mounting Adaptor

    Clamps around the lower post, and accepts a range of Pilot accessories.

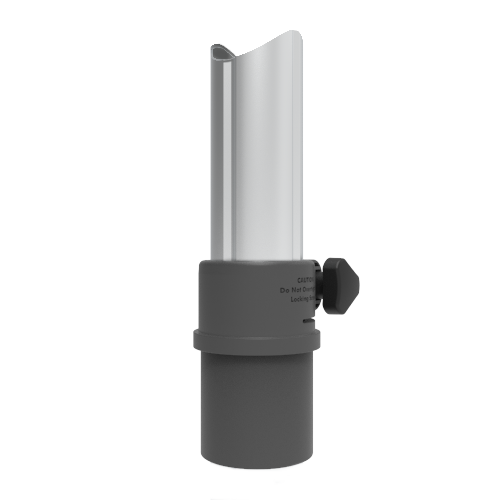

  • Telescopic Aluminium Post

    50mm upper post has a travel of 700mm and can be locked anywhere between 1300 and 2000mm.

  • Lower Stainless Steel Post

    63.5mm diameter by 1.5mm thick 304 grade stainless steel.

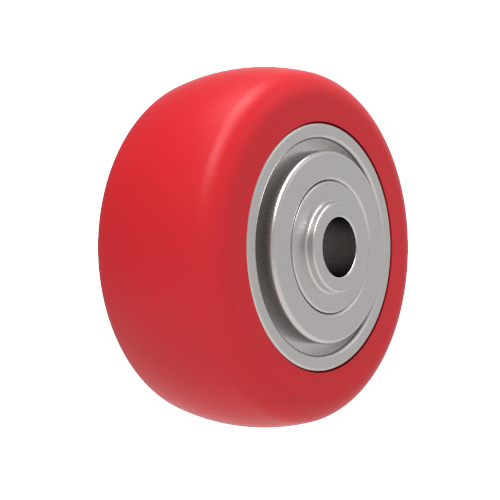

  • Ball Bearing Wheels

    Non-marking polyurethane wheels with sealed bearing are smooth and silent.

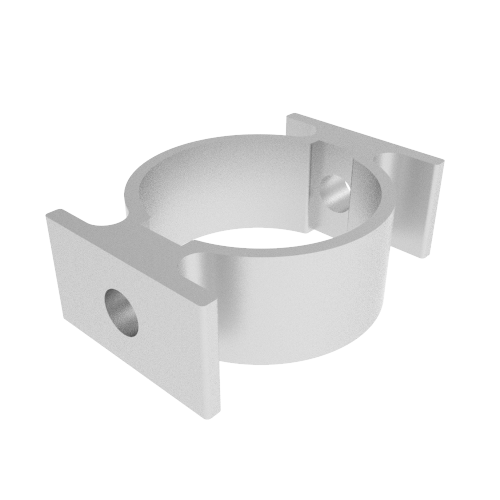

  • Sign Mount Brackets

    Two double sided aluminium sign brackets with fixings to attach Multi-Post signs.

360º View

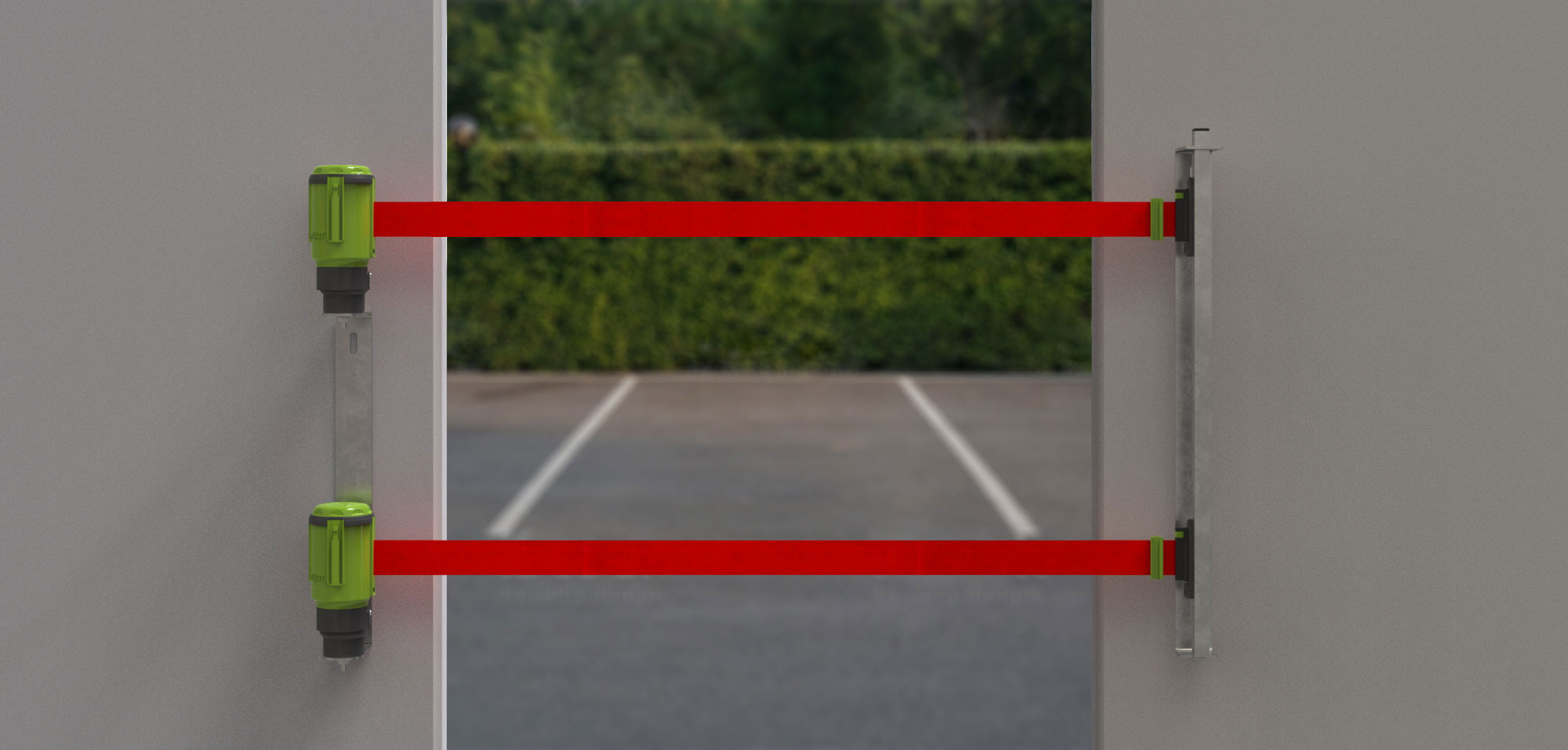

Pilot Doorway Barrier Kit

  • The Pilot Door Barrier Kit (PILOT-DBK) can be used on openings or doorways up to 10 metres in length when fully extended. Each kit consists of a mounting bracket fitted with two Pilot Twist-lok connectors for mounting the belt units, and a receiver bracket with aluminium connector rail and 2 belt receiver clips. Brackets are galvanised.

    Depending on the application and width of the required span, the bracket kit can be fitted with either two Pilot 5 or two Pilot 10 metre belt units. With the brackets securely mounted the connector rail is simply walked out and positioned in the receiver bracket on the opposite side of the opening. The recommended mounting height is 900mm from ground to the bottom surface of both brackets but can be adjusted to achieve the best visual and functional operation.

    NOTE: Pilot Door Barrier Kit and Pilot retractable belt units are ordered separately. 13 different belt (colour/text) options are available. Custom belt printing may be available on request at an additional cost.

  • Product Features:
    • Retractable Doorway Bracket and Belt Kit
    • Removable Pilot5 or Pilot10 Belt Barriers
    • Dual Belt visual deterrent
    • Custom printing available for Pilot5 & Pilot10 belts
    • Suitable for indoor and outdoor use
    • Up to 9.7 metres of doorway coverage
