NoWeld Modular Industrial Handrail and Guardrail

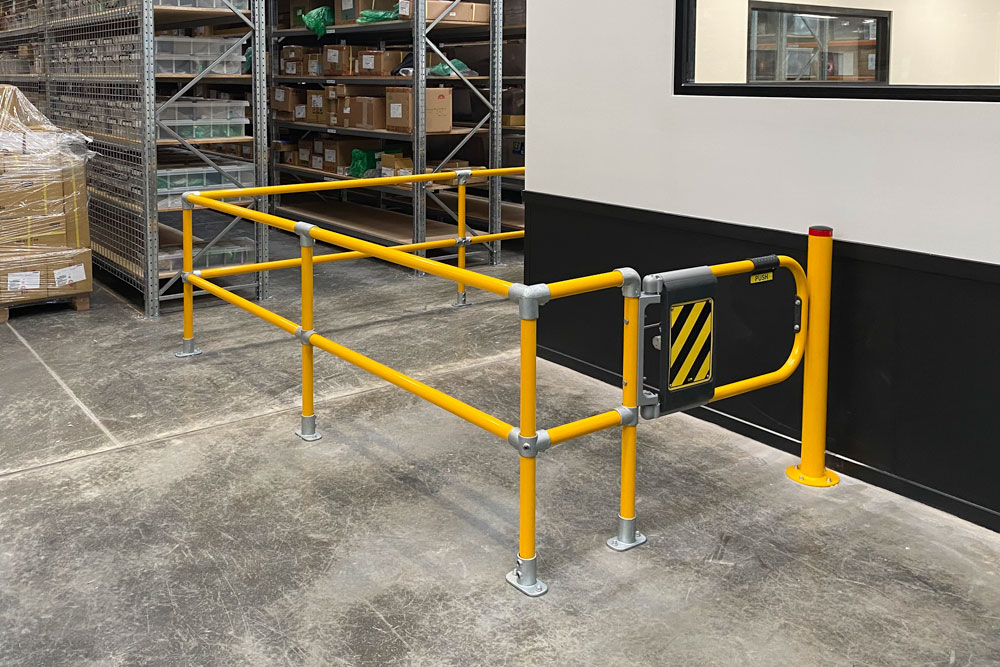

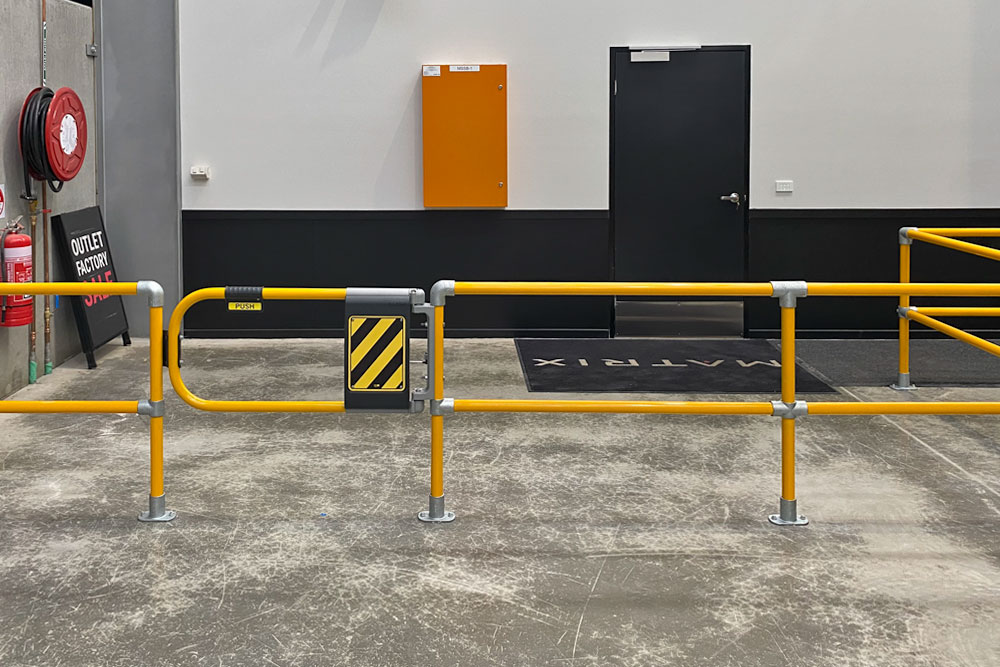

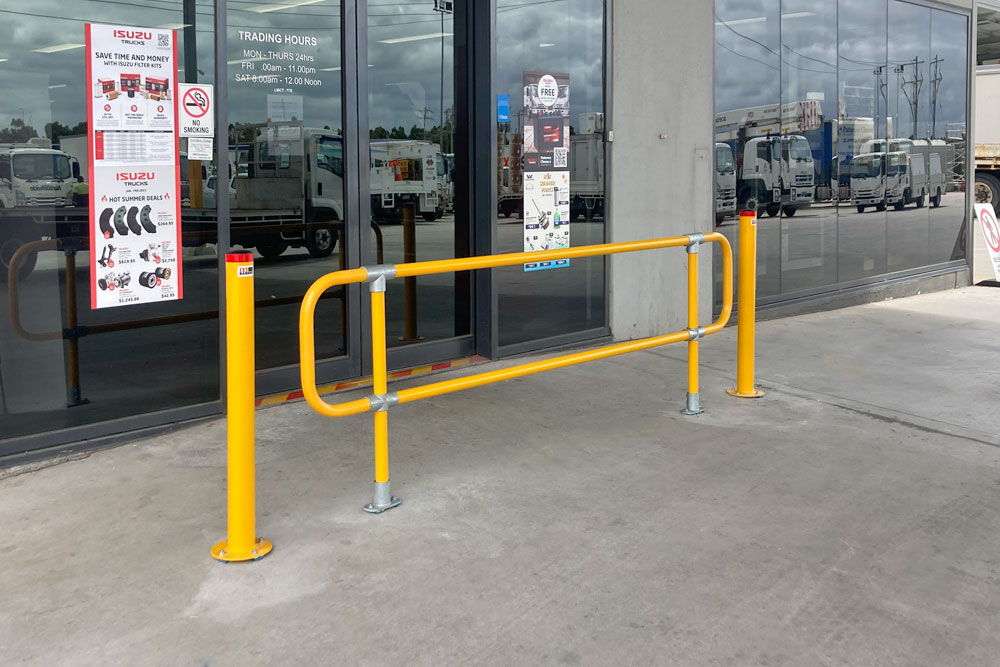

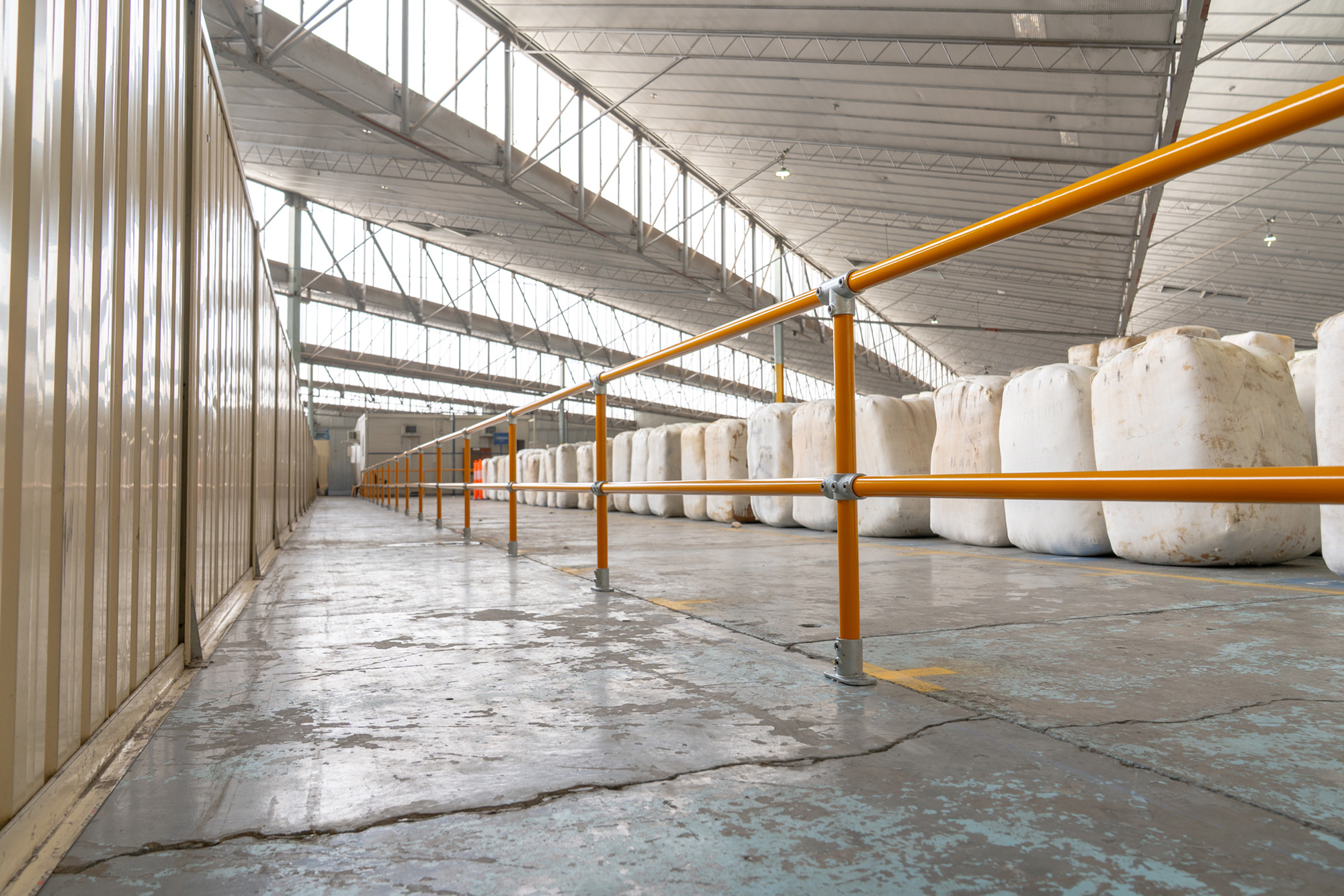

NoWeld modular industrial handrail system separates and protects.

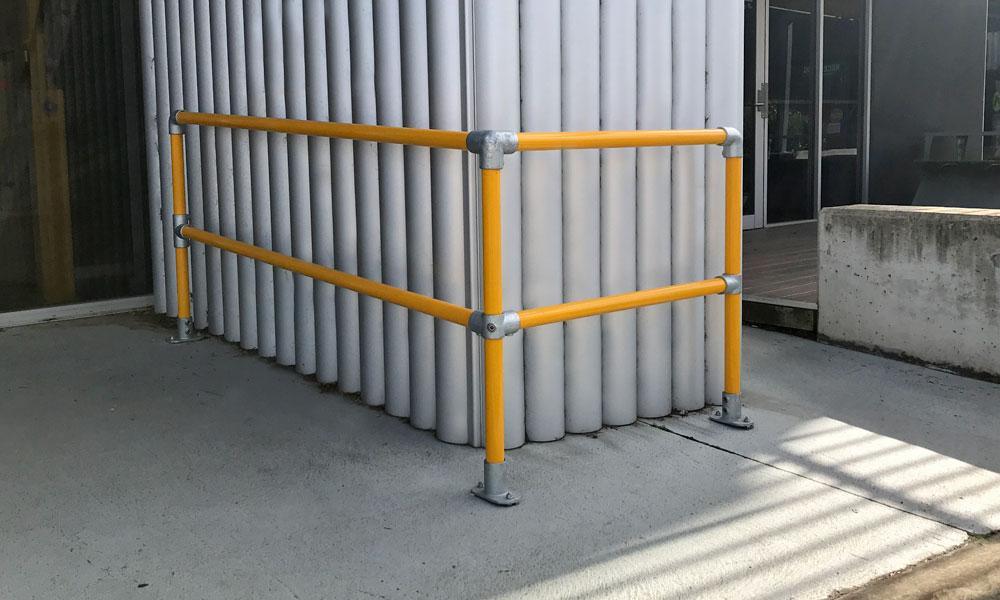

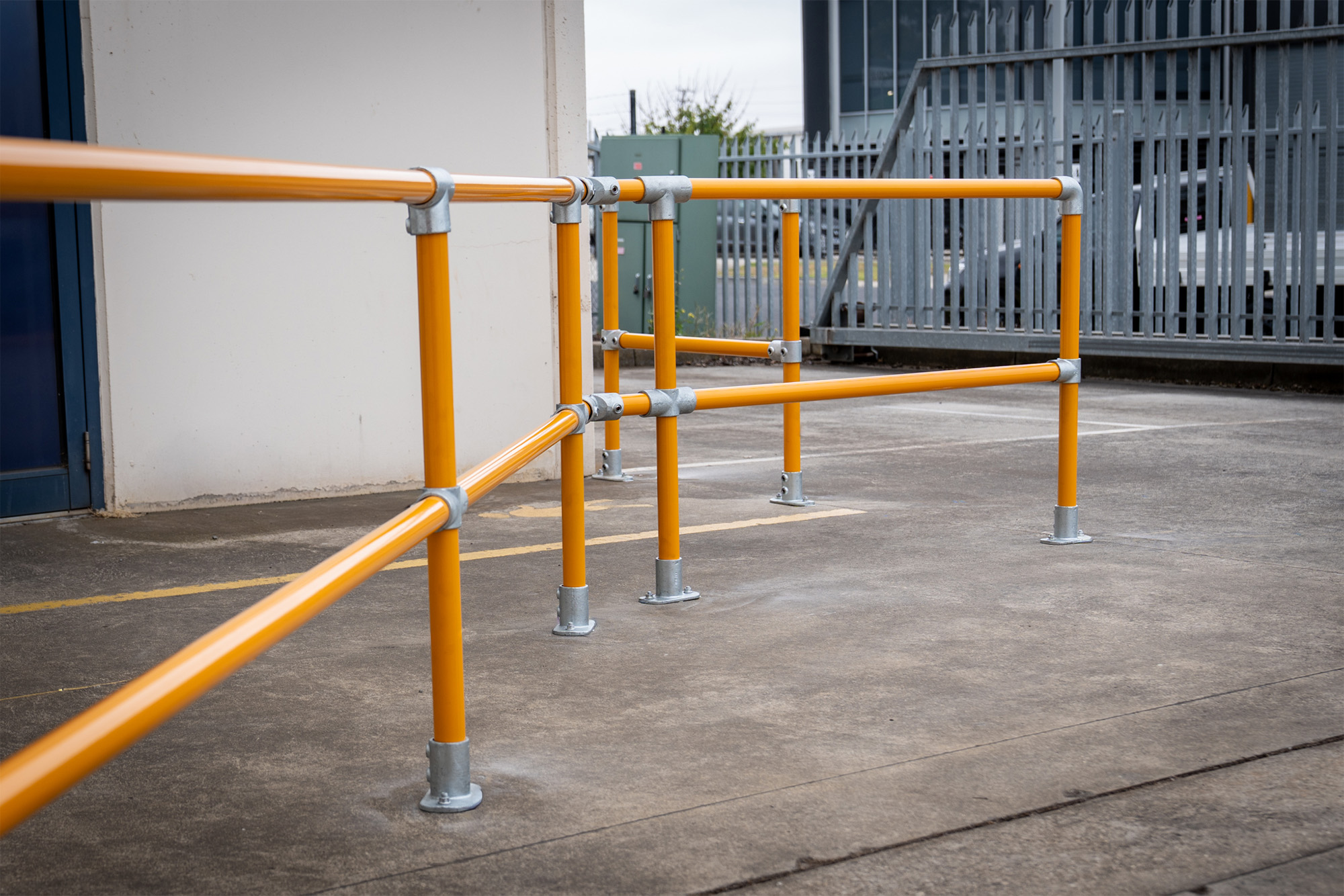

NoWeld is a strong, versatile, and easy-to-install modular industrial handrail system. With a wide variety of attachable components, NoWeld offers multi-directional runs, straight runs, 90° corners, end posts, removable posts, and gate posts. NoWeld also has a variety of angled fixture components designed for use on ramps and staircases.
In line with the recommended industry standard of installing at 2060mm post centre spacings, NoWeld 48mm O.D. (40NB) handrail pipe is sold in 2000mm lengths. When smaller sections of railing are required, simply cut down to size.
No welding means no 'hot permits' or excessive equipment is required at the time of installation. No threading or bolting means no special tools or skills are required to install.
The NoWeld modular industrial handrail system is solid and reliable, with sturdy mounting options. It complies with Australian Standards for use as a Balustrade on fixed platforms, walkways, and stairways (AS 1657:2018)
-
Post & Rail
Post and Rail
1 to 8 of 8 results1 to 8 of 8 resultsPost Length Suitability Chart
Length Surface Mount Side Mount Ground Socket Below Ground Railing 880mm 1000mm 1275mm 2000mm

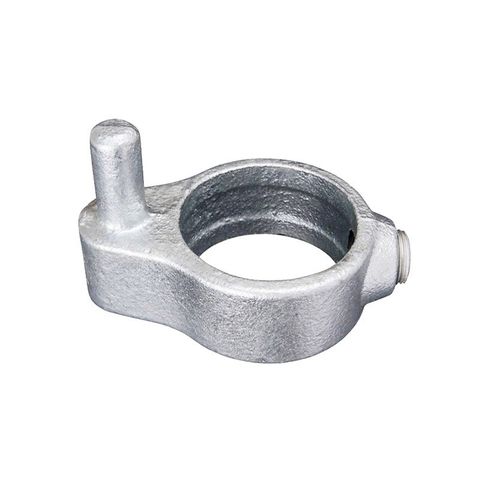

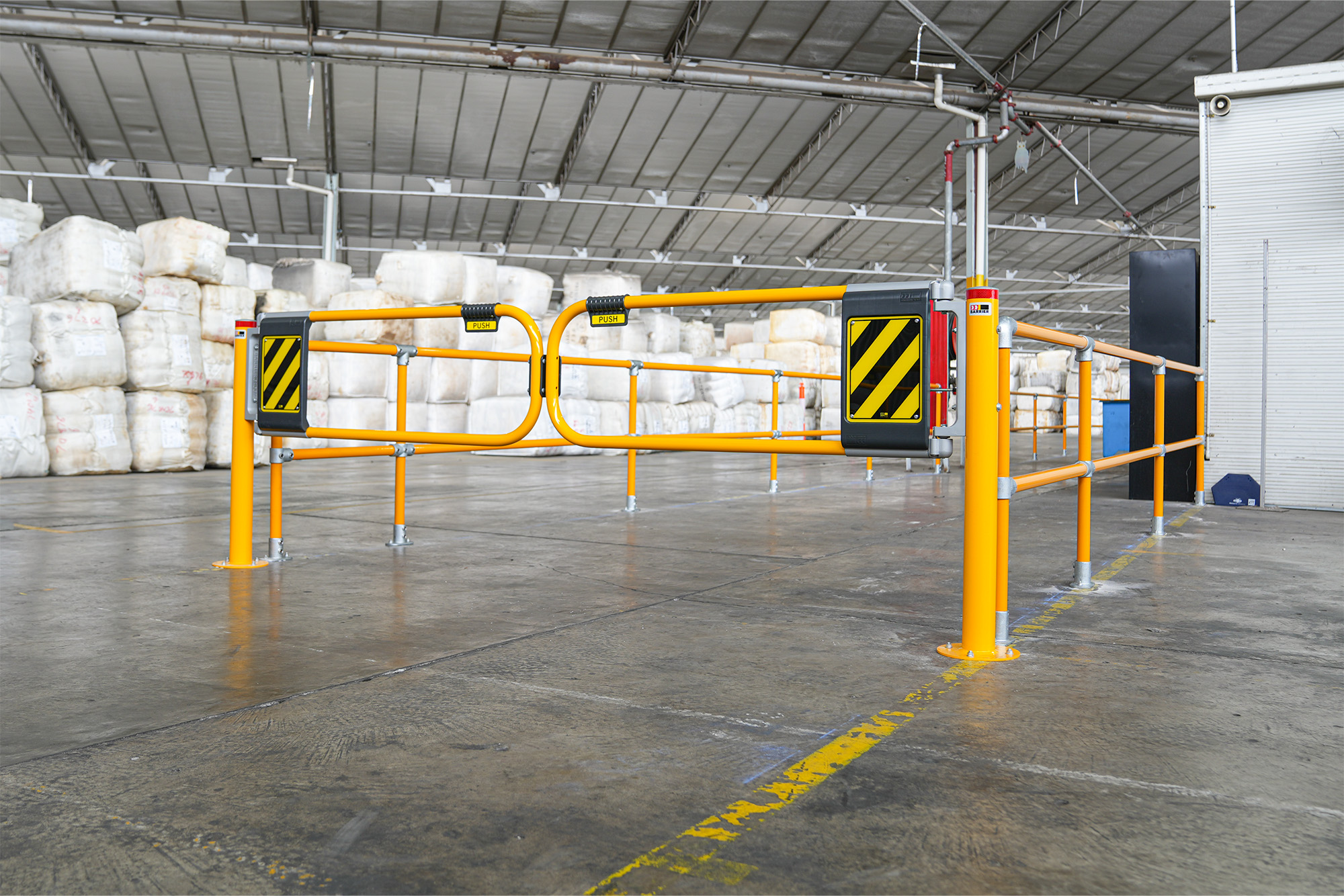

Gate
Gate

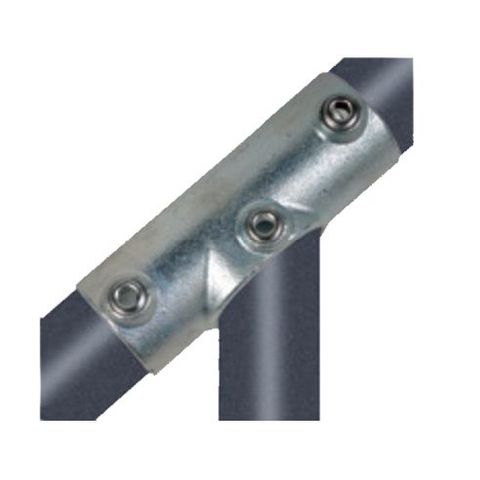

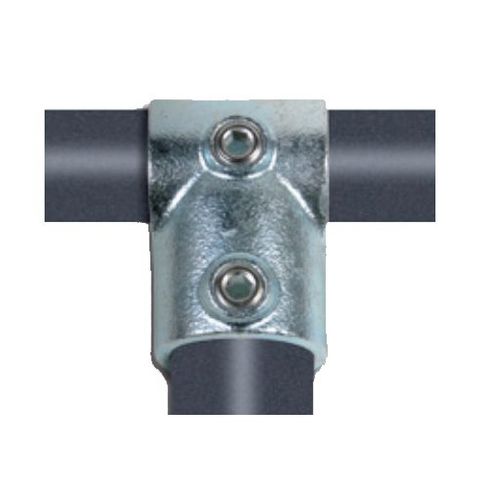

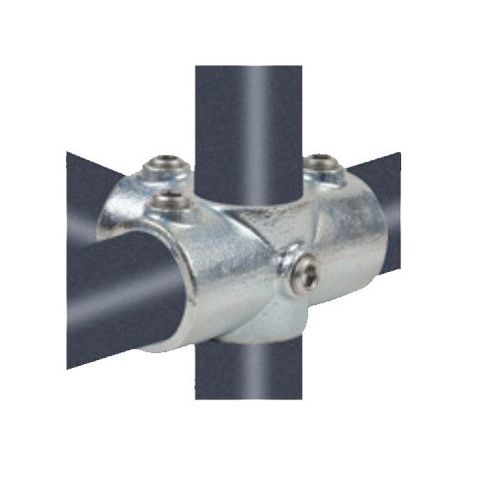

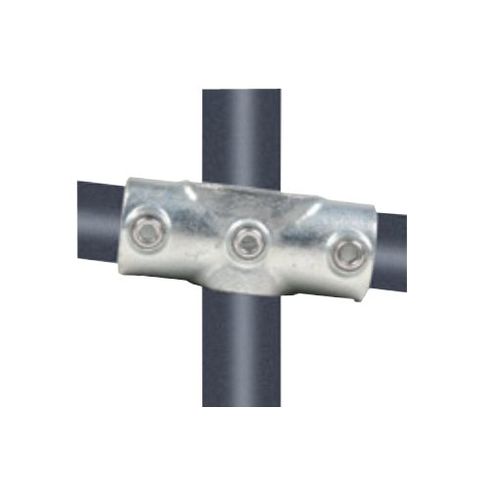

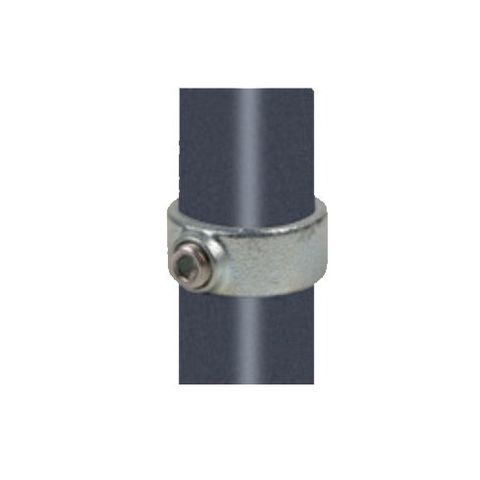

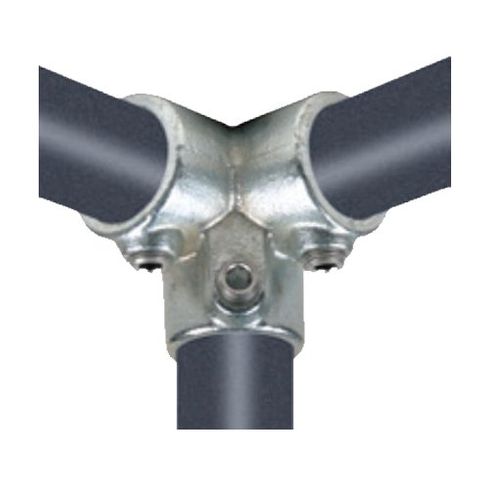

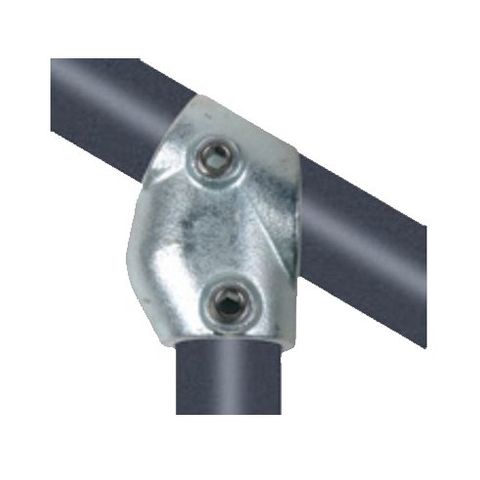

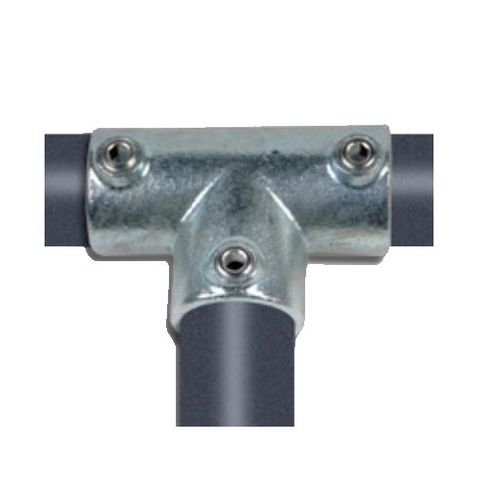

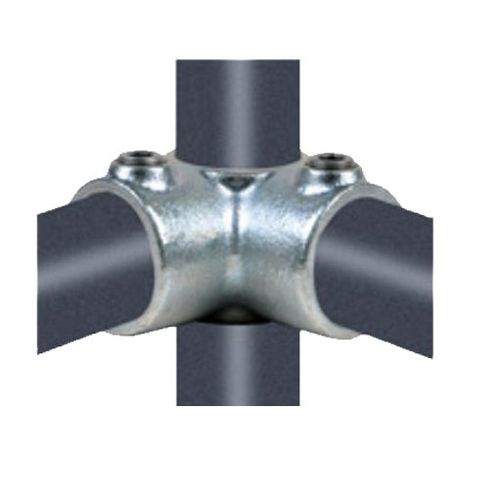

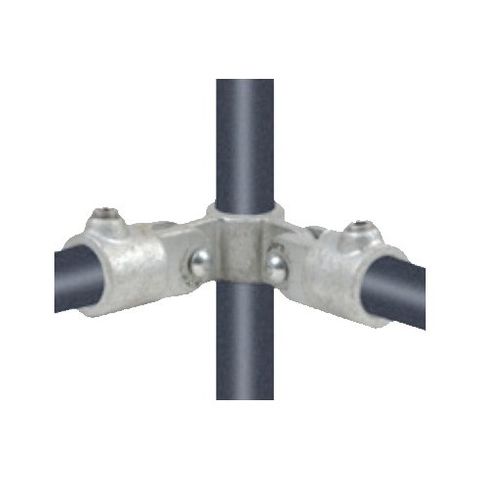

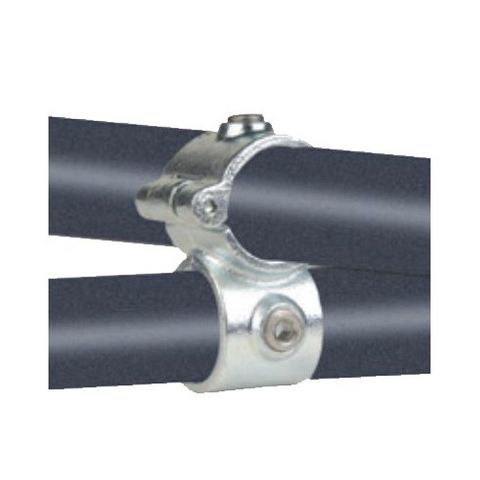

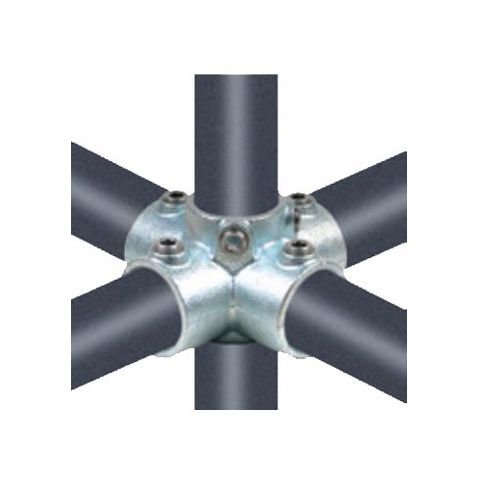

1 to 1 of 1 results1 to 1 of 1 resultsFitting/Connector
Fitting/Connector

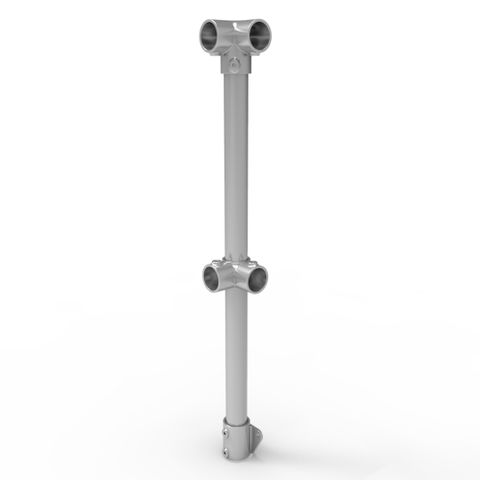

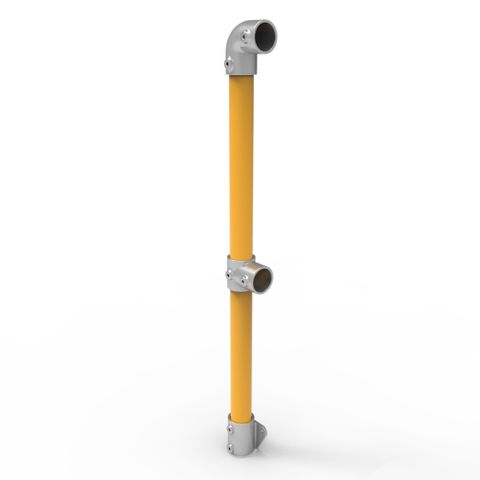

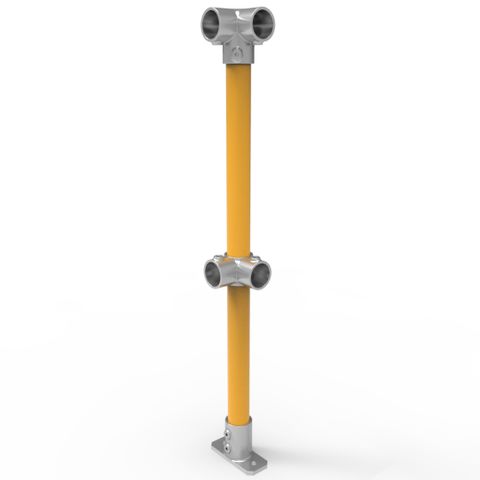

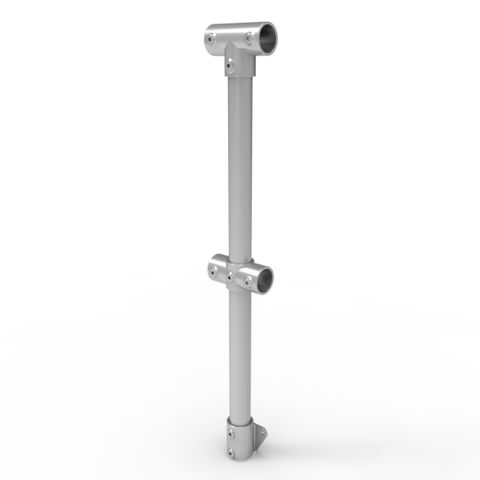

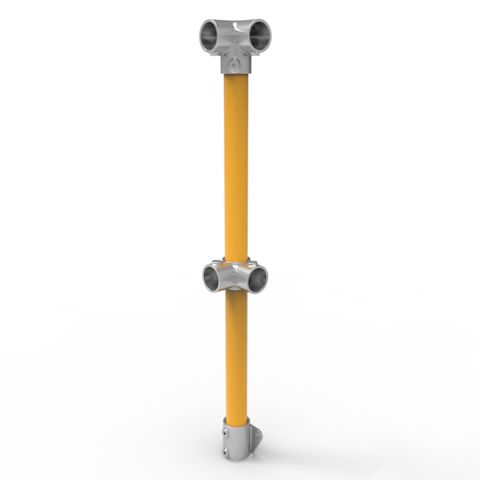

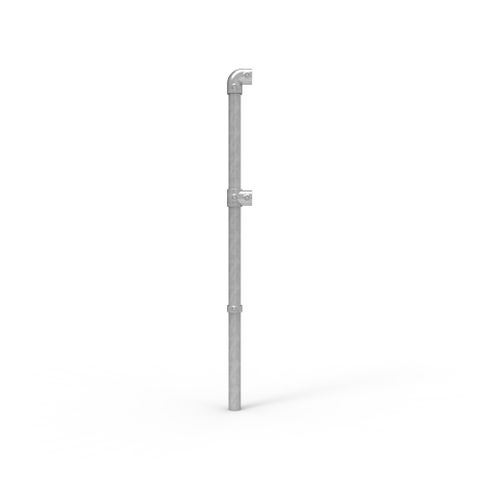

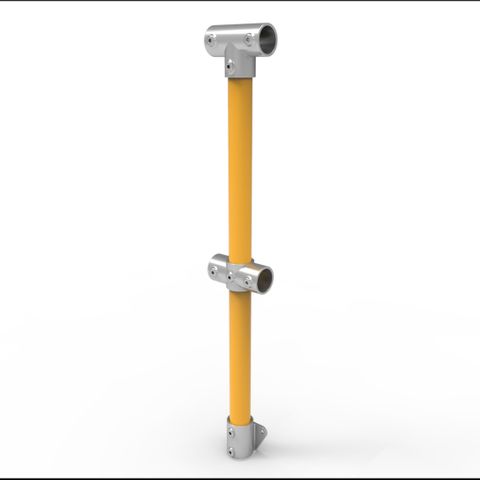

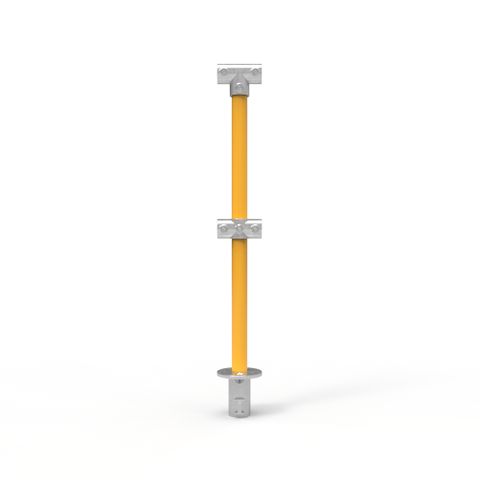

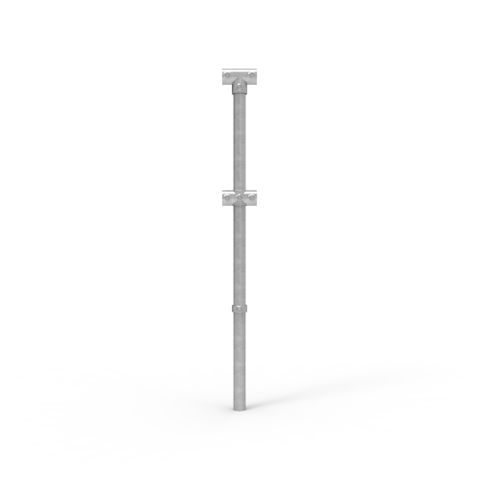

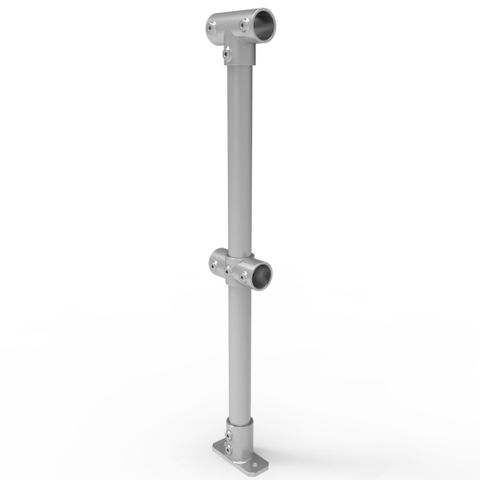

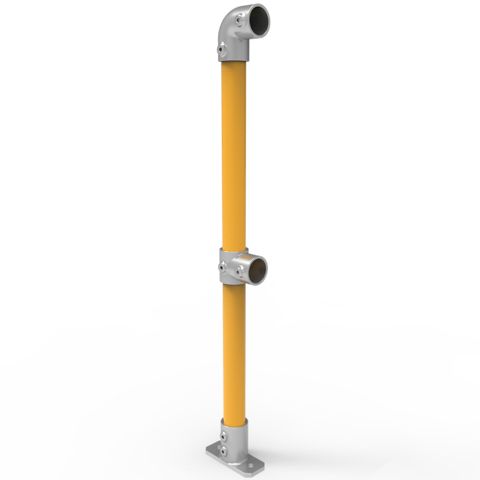

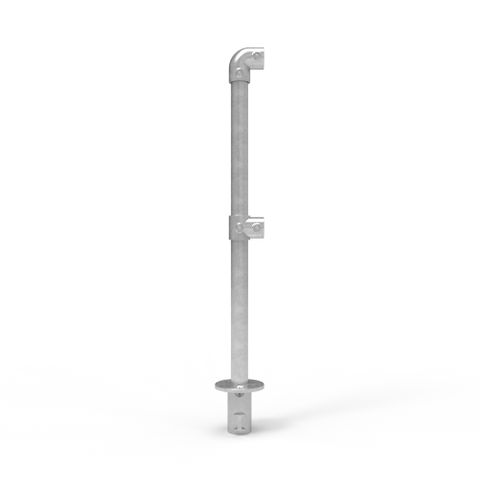

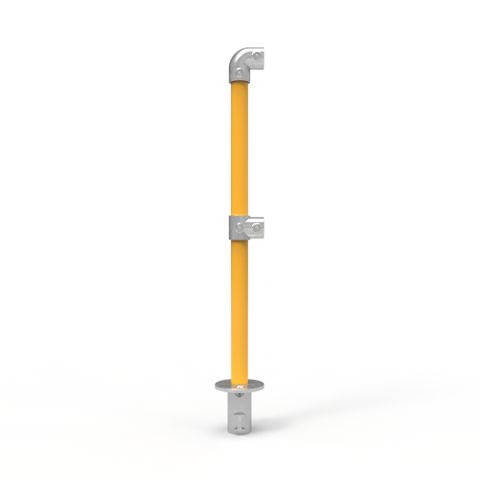

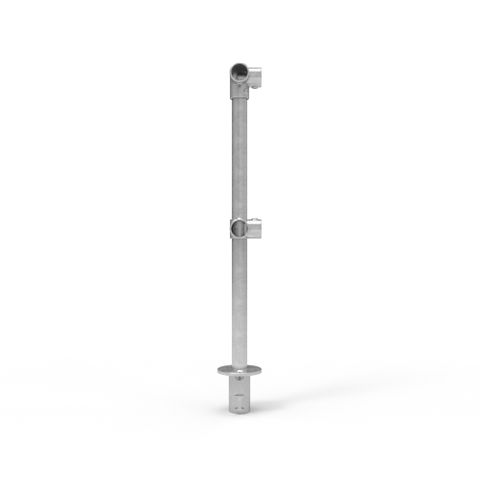

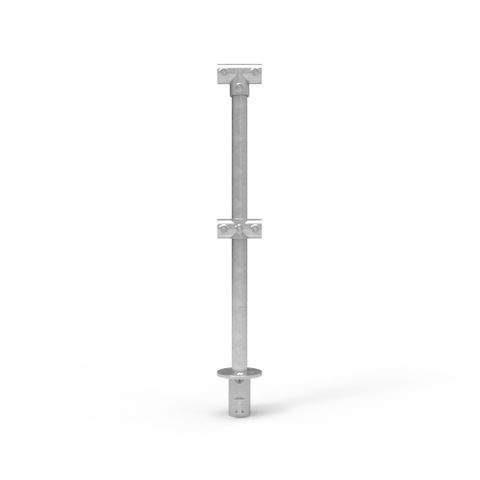

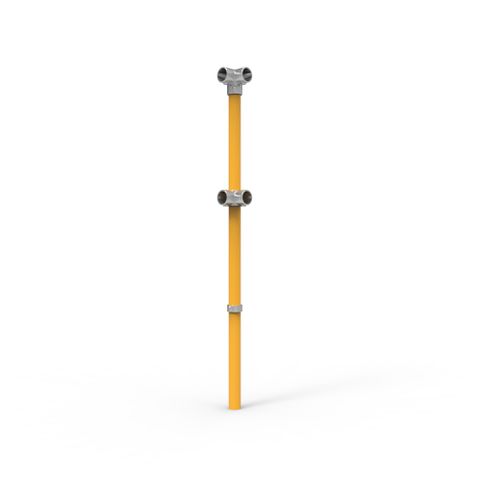

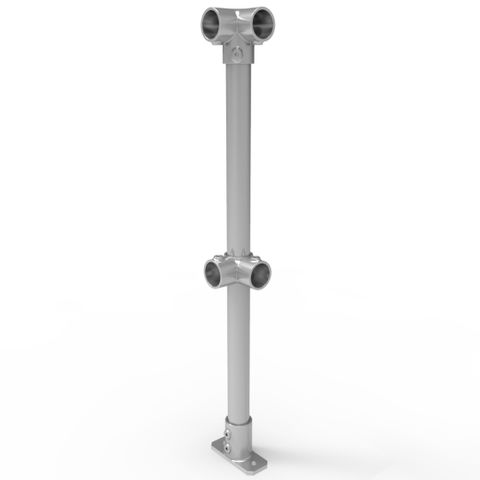

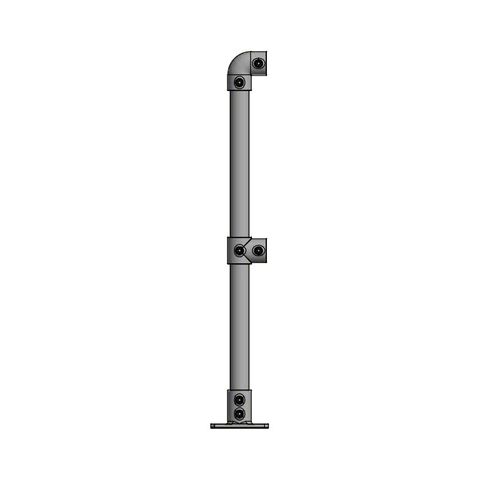

1 to 26 of 26 results1 to 26 of 26 resultsPost
Posts

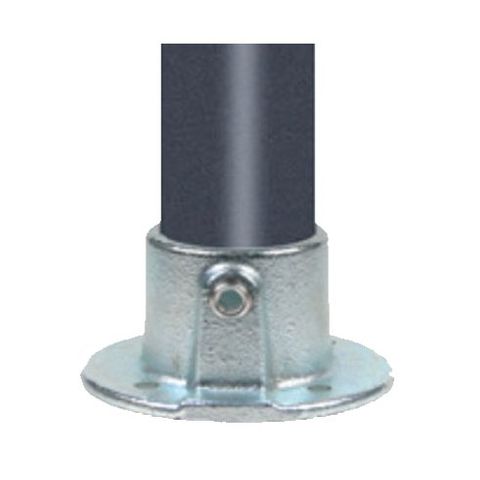

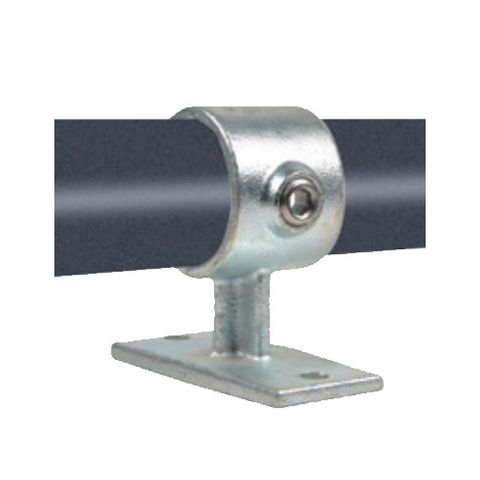

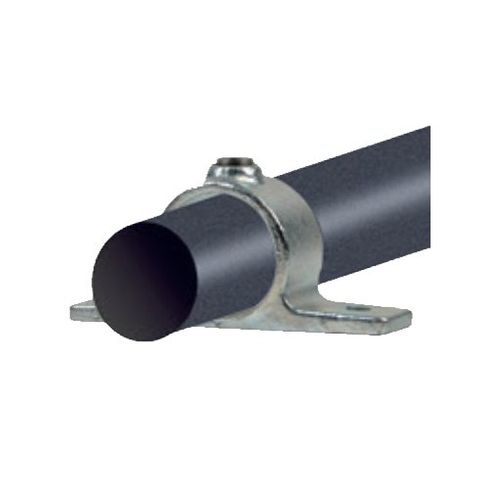

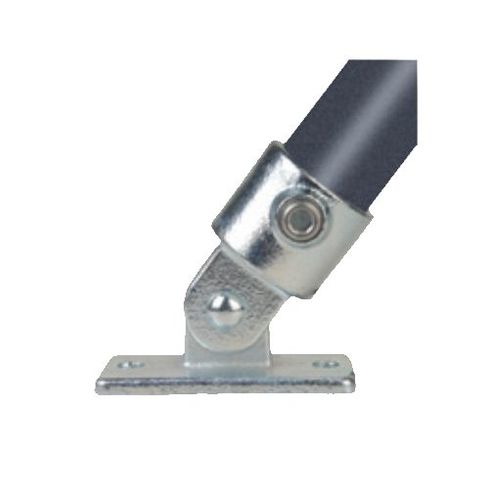

1 to 24 of 24 results1 to 24 of 24 resultsMounting Options
Mounting

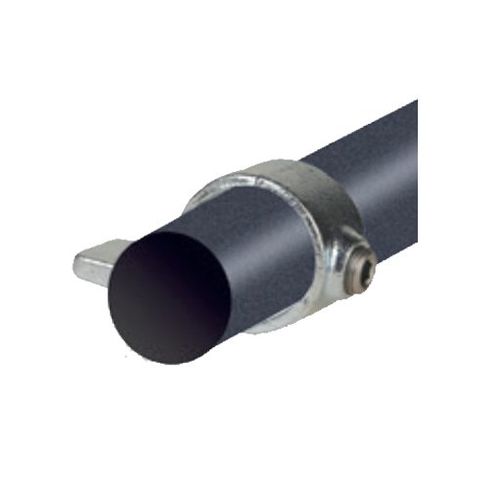

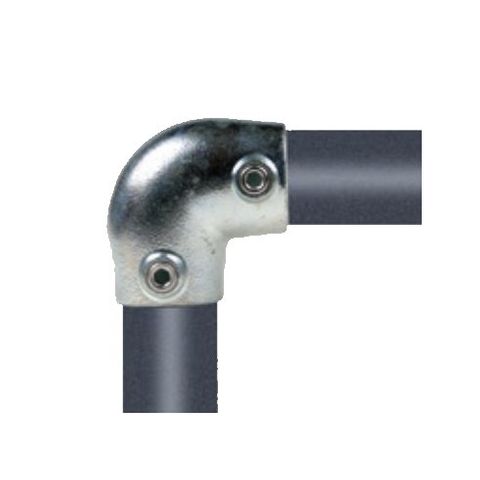

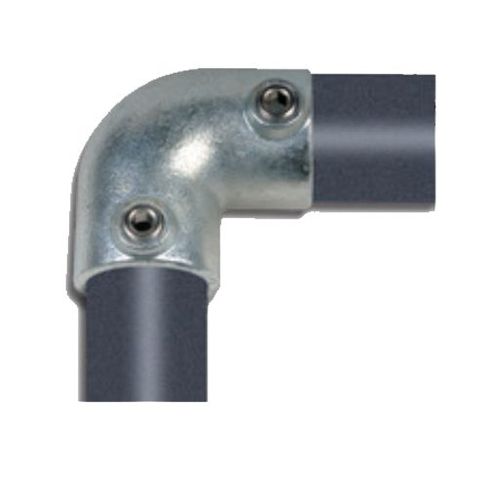

1 to 5 of 5 results1 to 5 of 5 resultsEnd Treatment/Bend
End treatment/ Bend

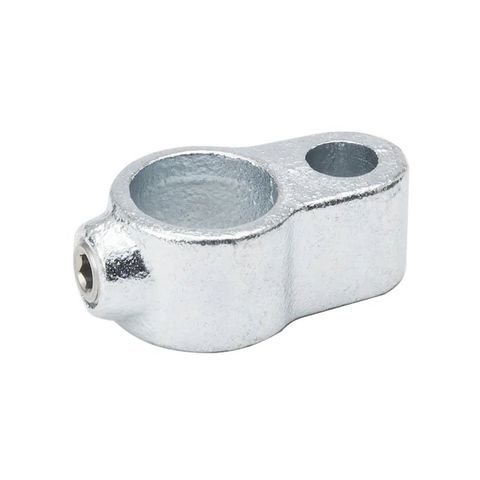

1 to 13 of 13 results1 to 13 of 13 resultsToe Board
ER/PR Toe Boards
1 to 8 of 8 results1 to 8 of 8 resultsToe Board Compatibility Chart
Clamp ER Railing PR Railing NoWeld Railing Ball Fence Railing** TBC48-A TBC63-A TBC90-A ** If using the aluminium toe board range.
-
Description: Modular Handrail System Size: Post and Rail 48mm OD (40NB) Material & Finish (Railing): Galvanised or Galvanised & Powder Coated Yellow Finish (Components): Hot Dipped Galvanised Cast Iron Height: Adjustable (refer to current Australian Standard guidelines) Spacing: Maximum post spacing 2060mm post centre to post centre -
