Removable Safety Rail System

Click and drag image to view 360˚

A modular handrail system for guiding pedestrian traffic or zoning off work areas, panels can be quickly released from the ground shoes if necessary. Three different rail sizes can be mixed and matched with ether single or double ground shoes to form stand alone or continuous barriers.

Product Features:

Modular design allows maximum design flexibility.
Heavy steel rails are powder coated safety yellow.
Cast floor shoes available in single or double socket.
Handrail and knee rail spacings comply with AS1657:2018.
Safety Rails can be quickly removed and replaced if necessary.

Request Quote

Download PDF

Removable Safety Rail System

1 to 5 of 5 results

Code	Product Name

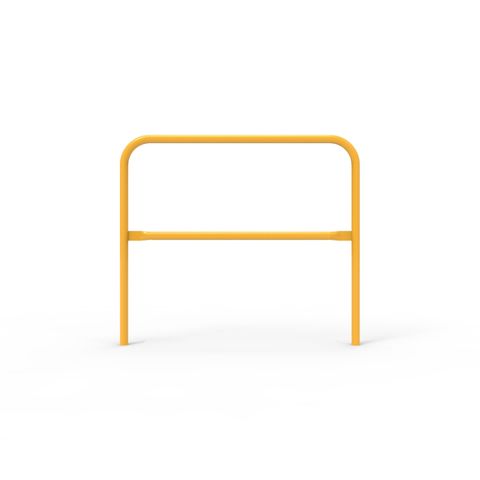

SRD1220-Y	Double Safety Rail 1220 x 42mm - Galvanised and Powder Coated Safety Yellow	Login For Price

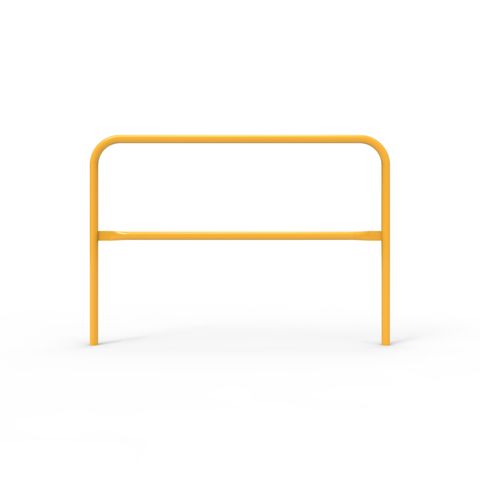

SRD1525-Y	Double Safety Rail 1525 x 42mm - Galvanised and Powder Coated Safety Yellow	Login For Price

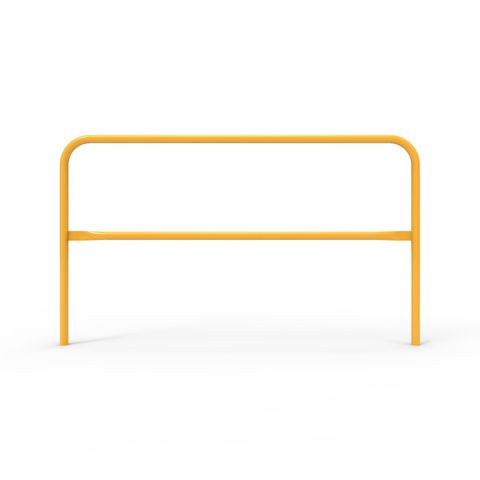

SRD1830-Y	Double Safety Rail 1830 x 42mm - Galvanised and Powder Coated Safety Yellow	Login For Price

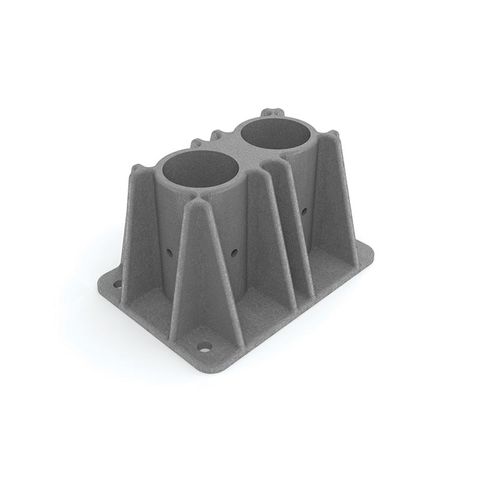

SRCS-D	Safety Rail Cast Shoe - Double	Login For Price

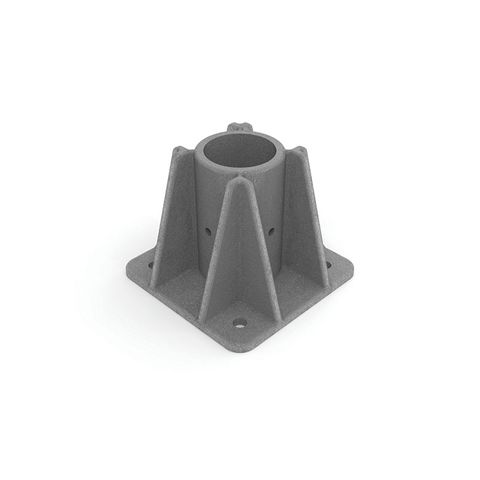

SRCS-S	Safety Rail Cast Shoe - Single	Login For Price

1 to 5 of 5 results

Description:	Modular hand rail system
Operation:	Rails plug into floor mounted sockets
Construction:	Powder coated steel rails with cast steel floor sockets
Hand rail height:	1050mm
Knee rail height:	530mm
Panel lengths:	1220, 1525 or 1830mm
Panel weights:	12.7, 15 or 17.2kgs
Tube diameter:	42mm
Single socket:	H102 x W127 x L127mm (3.1kgs)
Double socket:	H102 x W127 x L190mm (5.4kgs)
Finish:	Safety yellow powder coat
