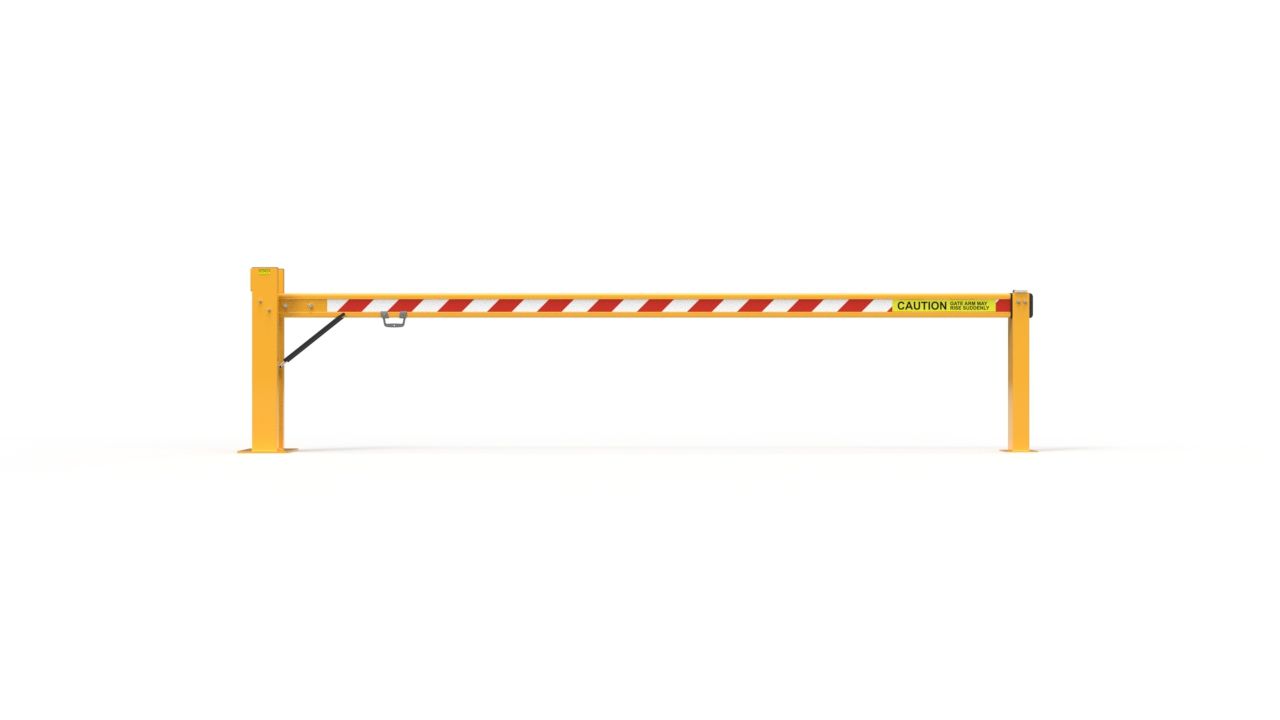

Manual Strut Assisted Dock-Safe Boom Gate Kit

A Manual Strut-Assisted Dock Boom Gate designed for elevated loading docks to prevent falling accidents

The Manual Strut Assisted Dock-Safe Boom Gate Kit is a strong safety barrier. The design accommodates elevated loading docks and high areas. This kit helps prevent fall accidents and improves workplace safety. This manual boom gate also protects roller door tracks.

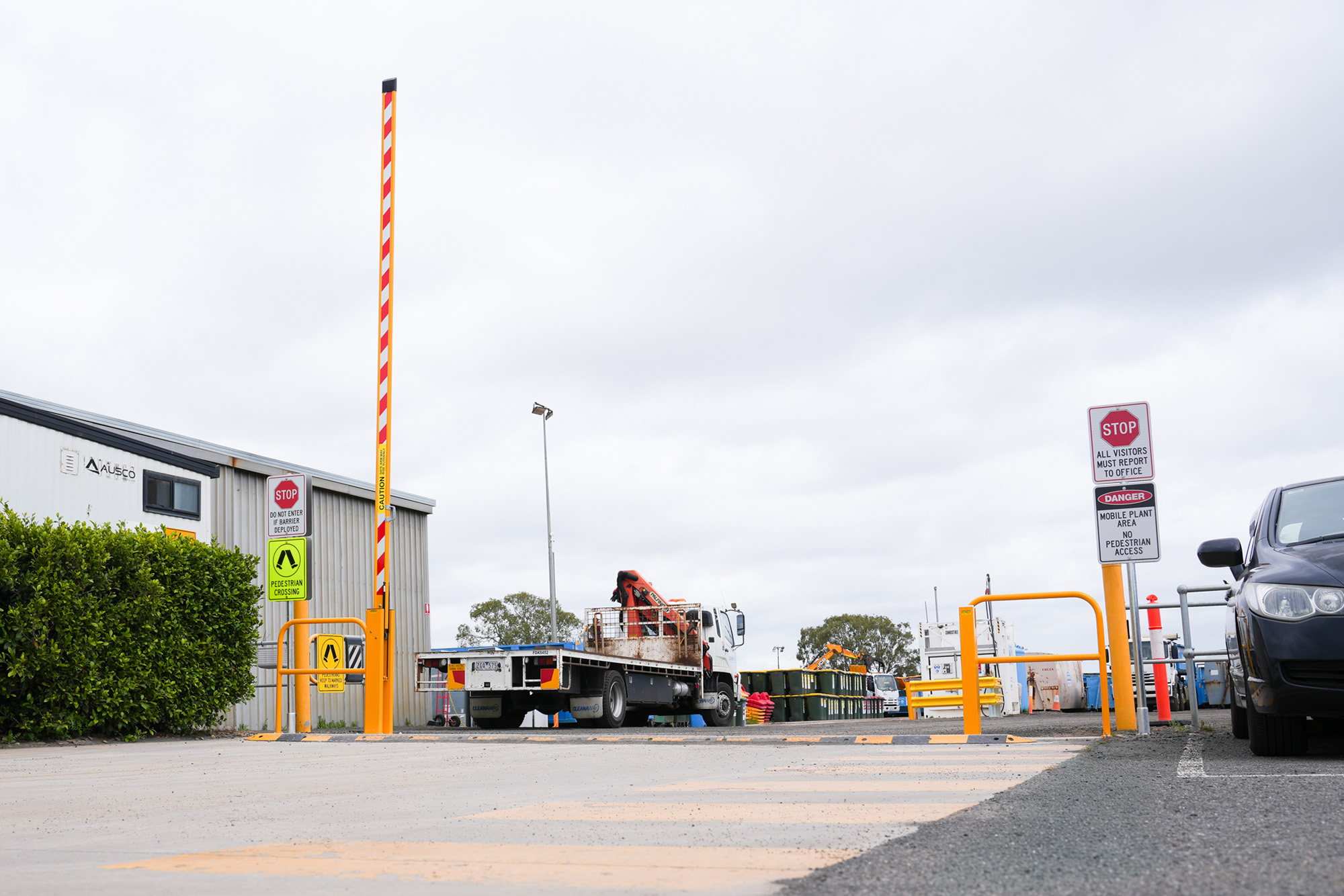

It is recommended that the boom be locked in the down position while the loading area is vacant and not in use. When the area is in use, one person can easily release and lift the boom. This is possible with the help of the lock and the easy-release strut-assisted lifting system.

Click and drag image to view 360˚

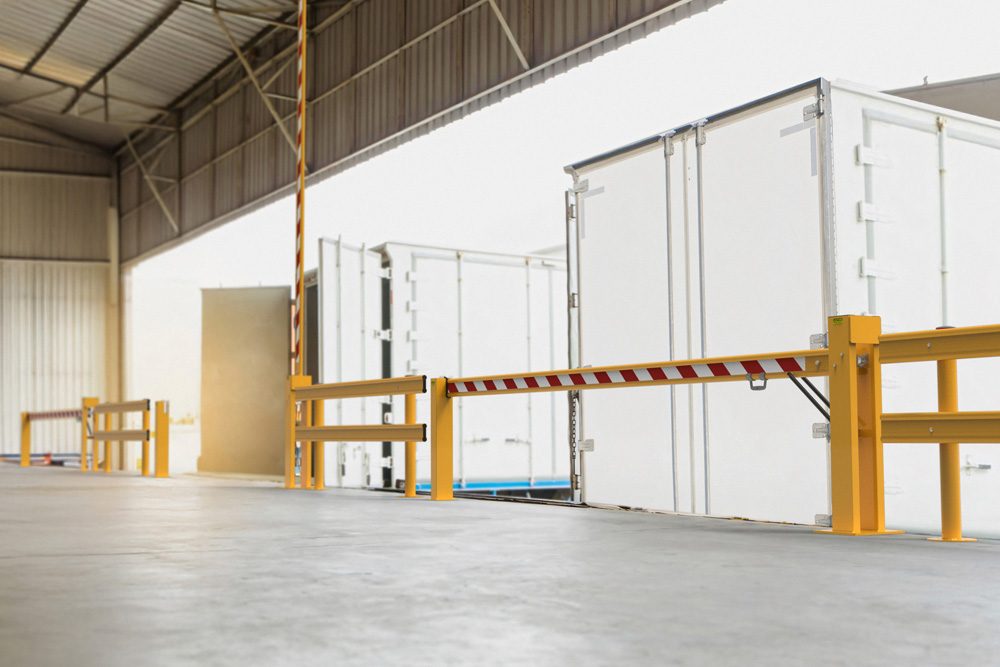

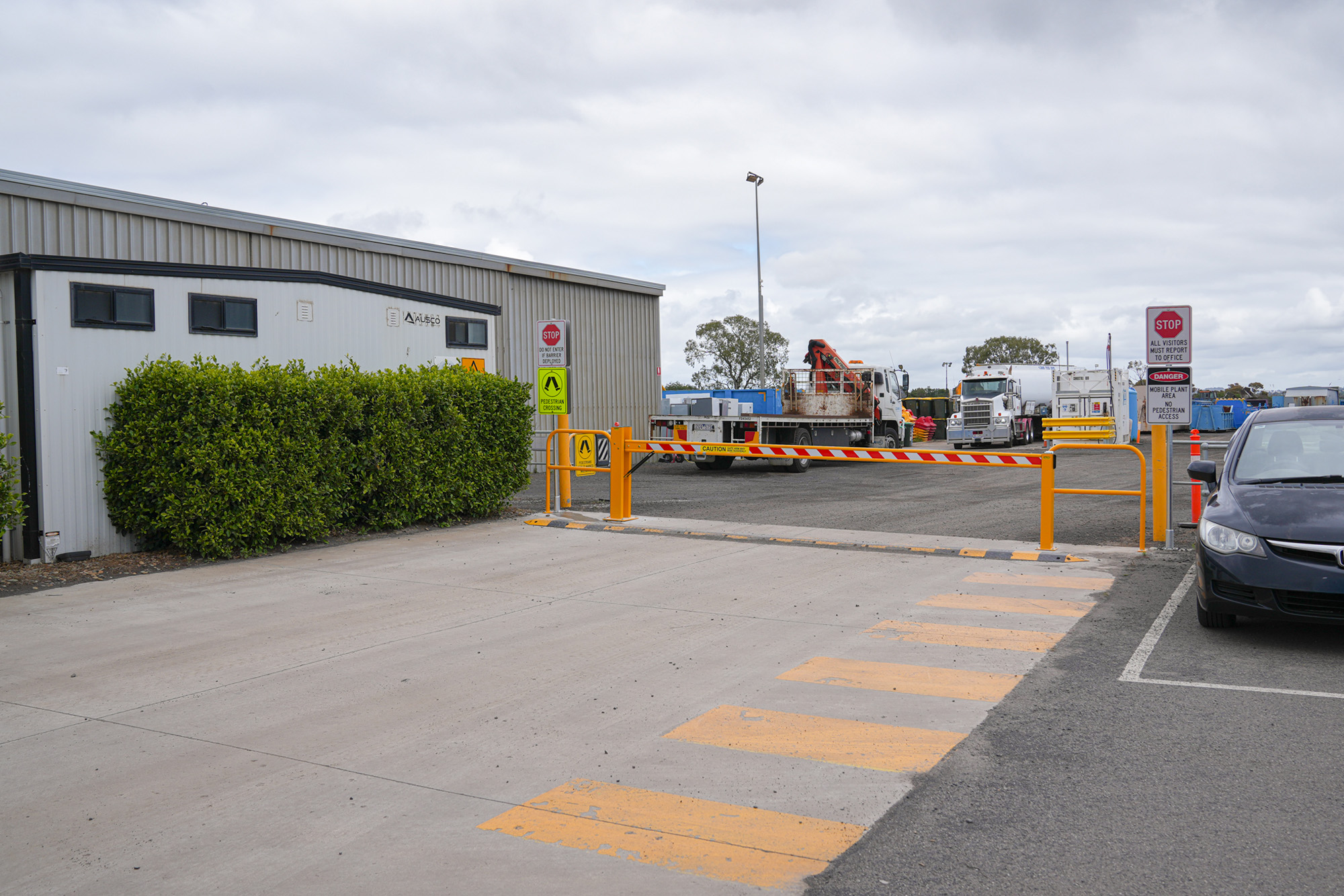

Once work on the dock is complete, the boom can return to its locked position. This creates a safety barrier. This manual boom gate is ideal for industrial applications like warehouses, factories and distribution centres. Our Manual Dock-Safe Boom Gates are available in kits that include a gate post, two gas struts, a boom and a receiver post.


  • Code Image Product Name
    MSBG5000

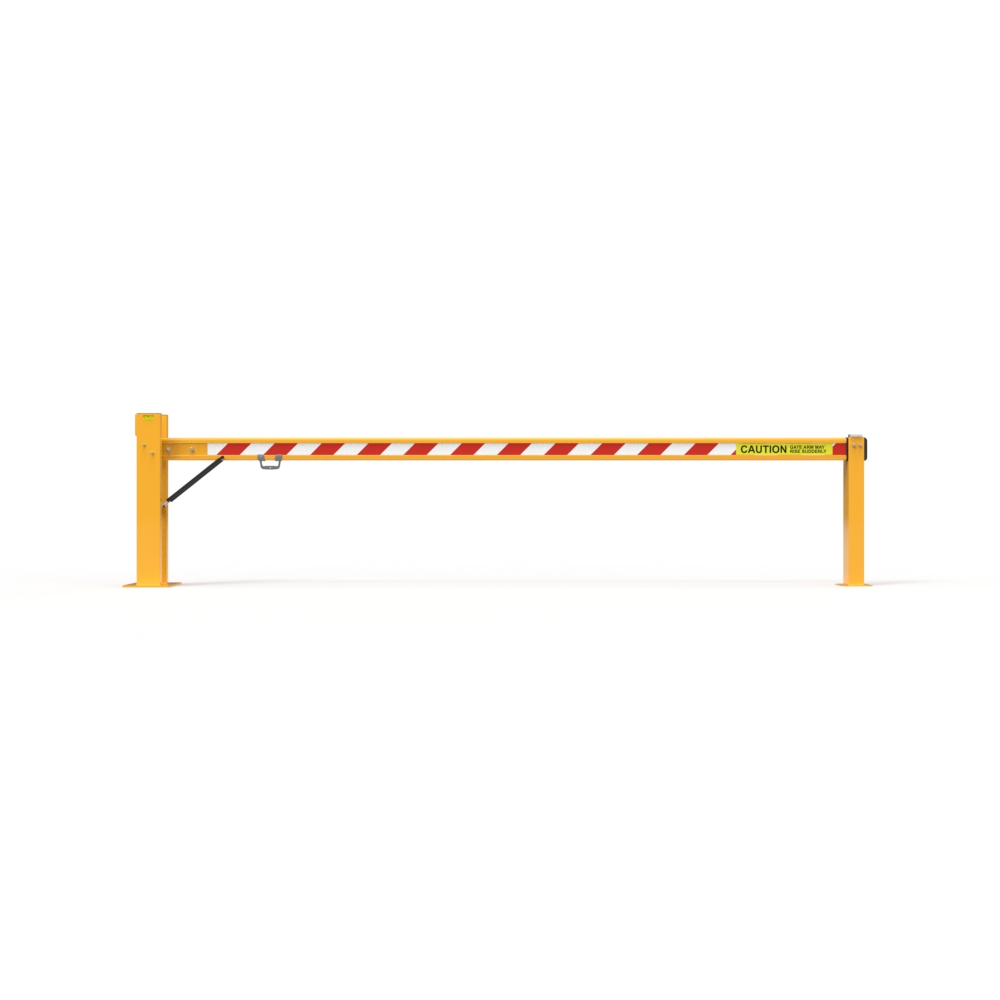

    Manual Strut Assisted Dock-Safe Boom Gate Kit
    Manual Strut Assisted Dock-Safe Boom Gate Kit
  • Weight 57 kg
    Dimensions 5265 × 350 × 1103 mm
    Colour Safety Yellow
    Finish Galvanised & Powder Coated
    Operation Manual lift with gas strut assistance
    Standard Rail Length 5000mm
    MAX Recommended Rail Length 6000mm
    MIN Recommended Rail Length 3000mm
    Clear Opening Includes Base Plates 4764mm
    Clear Opening Excludes Base Plates 4890mm
    Max Opening (Clear Opening Excludes Base Plates) 5890mm
    Min Opening (Clear Opening Excludes Base Plates) 2890mm
    Rail Height 950mm
    O/H Clearance 5974mm
    Oversize Yes
    Fixings Included Yes
    Installer Recommendation Professional
    Gate Travel 90 Degrees Vertical
    Gate Stop Built-in
    Gate Latch Yes
    Hold Open No
    Receiver Post Included (Optional wall mount receiver)
    Mounting Type Surface mounted posts
    Rail Type Aluminium 145 x 40mm
