Round Bollards Economy Steel
Light duty bollards with value and quality in mind

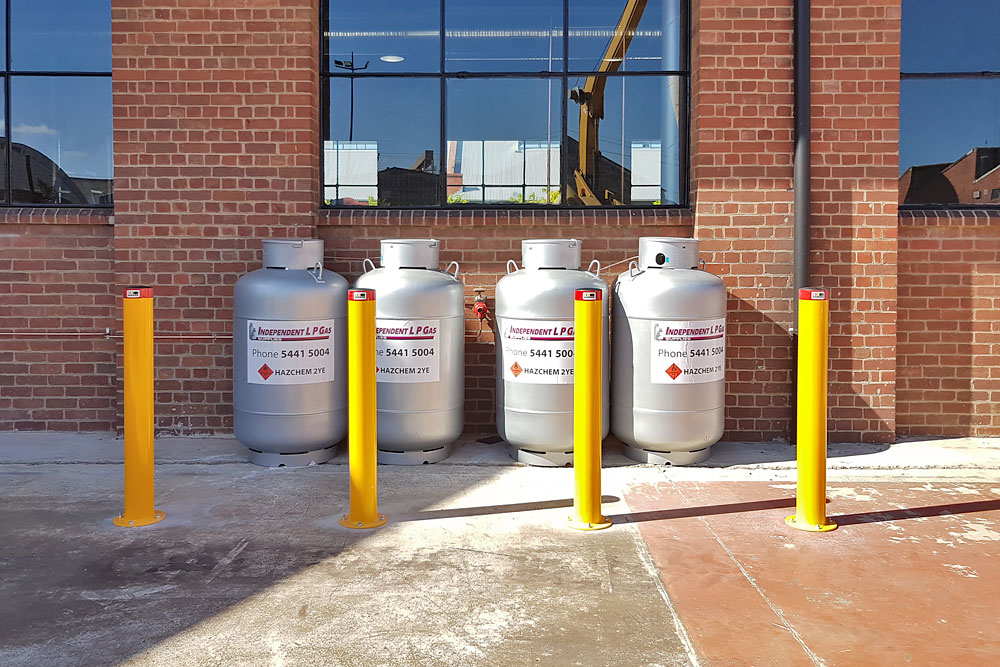

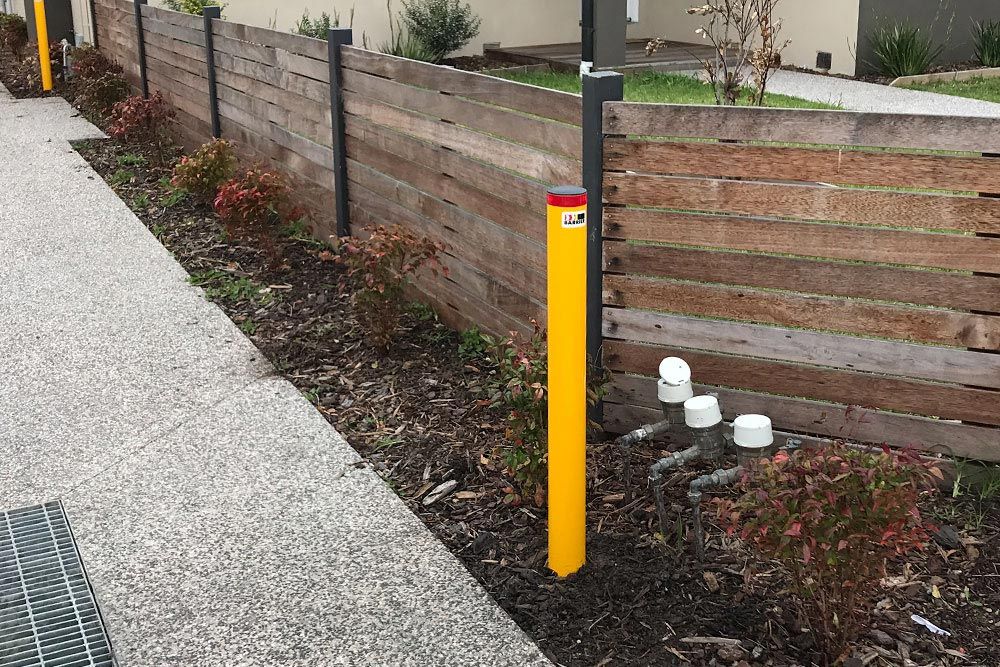

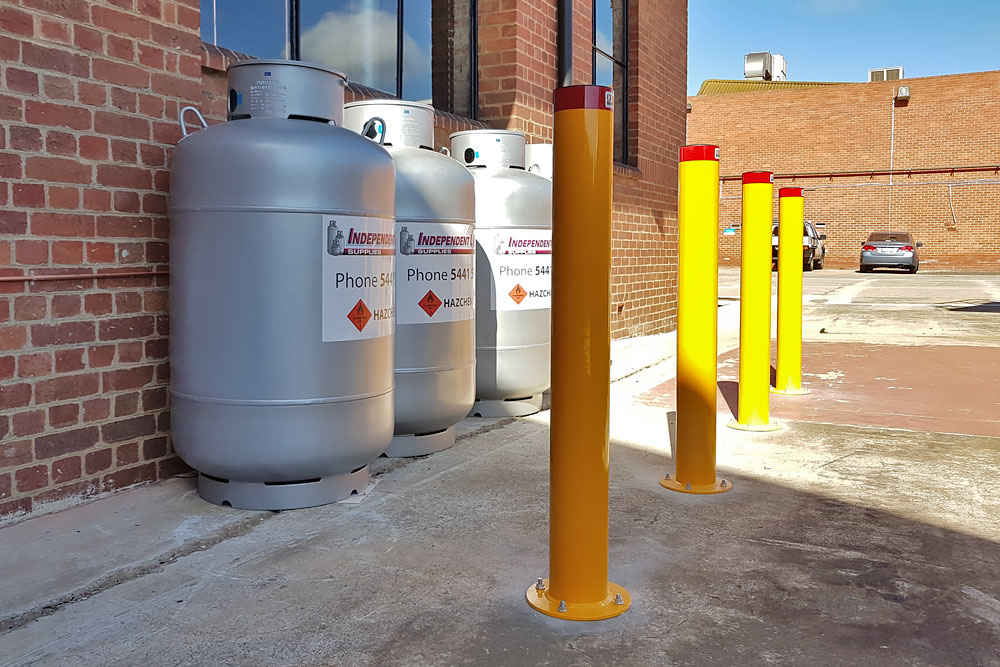

Our Builders Range bollards are available in either surface mount or below ground models in 63mm, 90mm, 114mm or 140mm diameters. They are designed for lighter duty applications such as zoning off areas or pedestrian management.

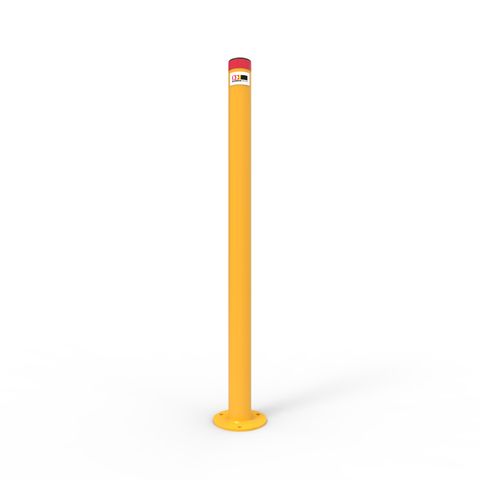

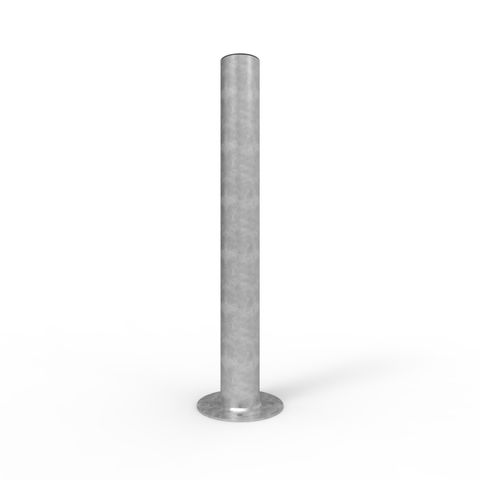

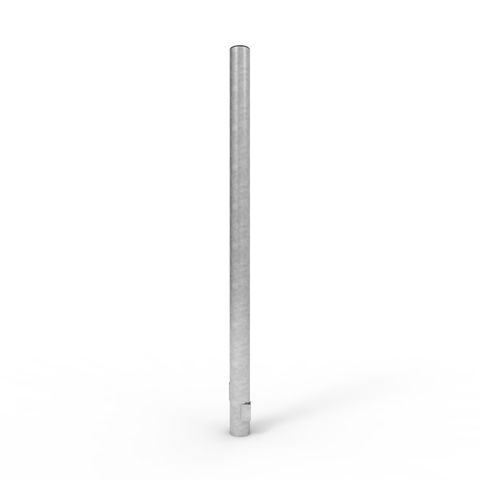

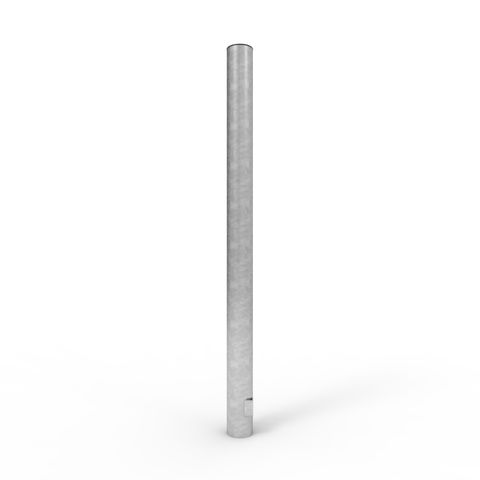

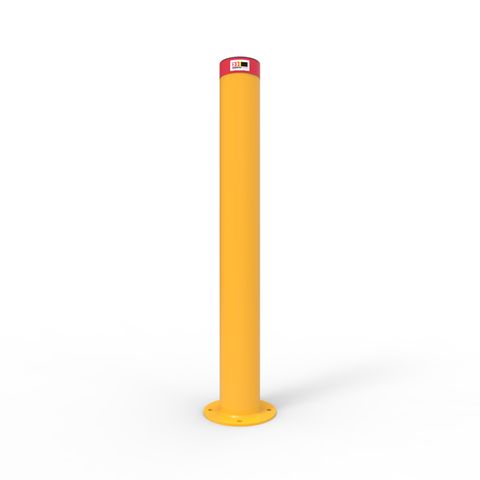

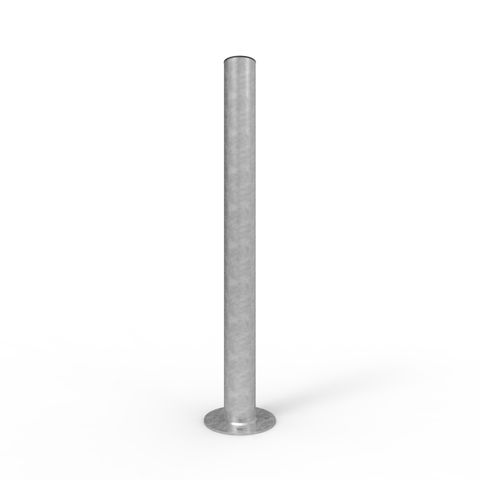

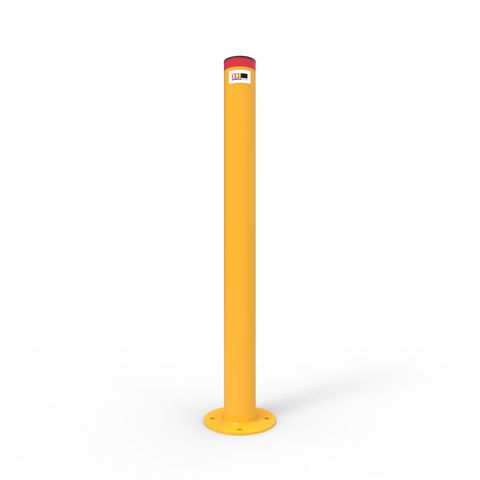

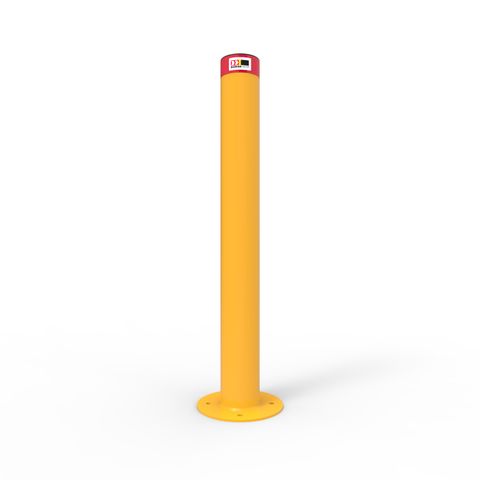

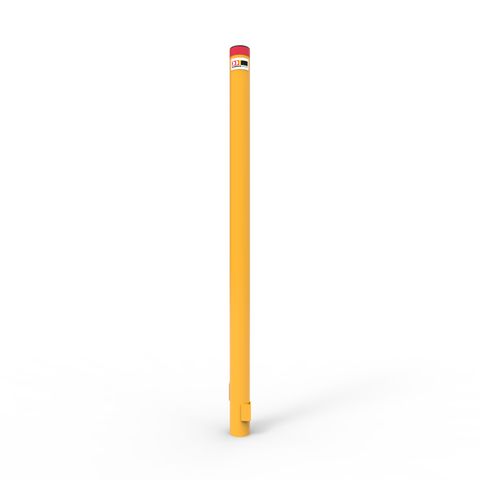

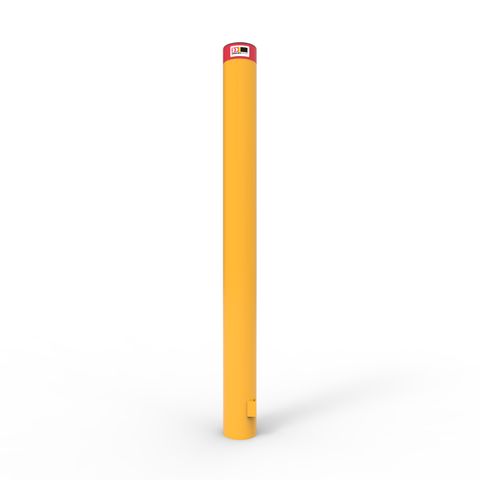

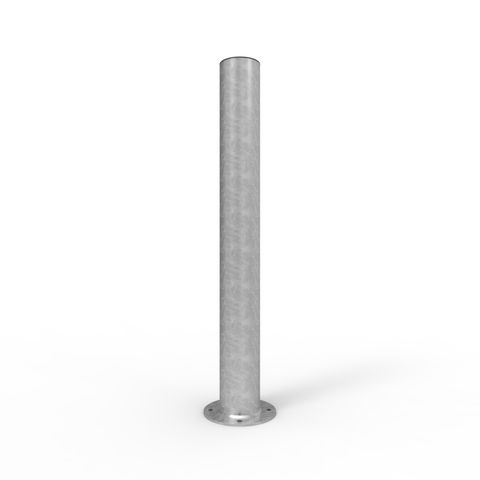

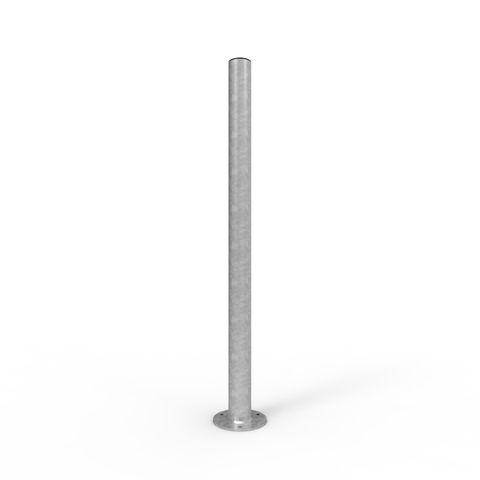

The surface mount models come with fully welded base plates and fixings while the below ground models have welded starter bars for setting into concrete footings.
All models are hot dip galvanised after manufacturing and come with a removable black plastic cap. The standard powder coating colour is safety yellow but other colours are available on request.

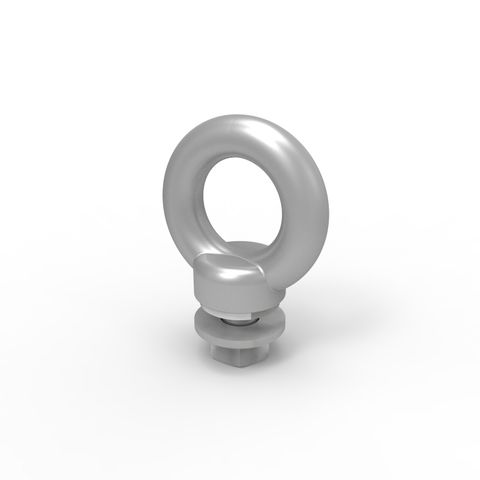

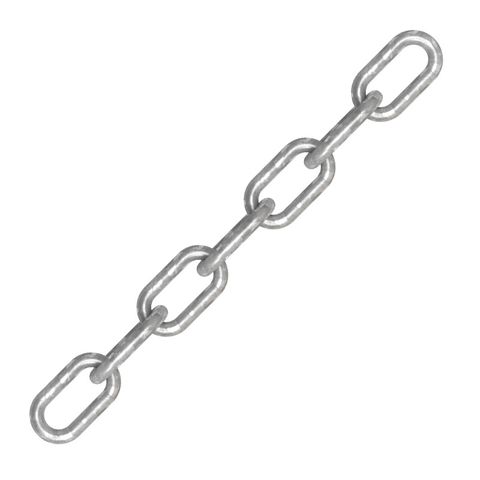

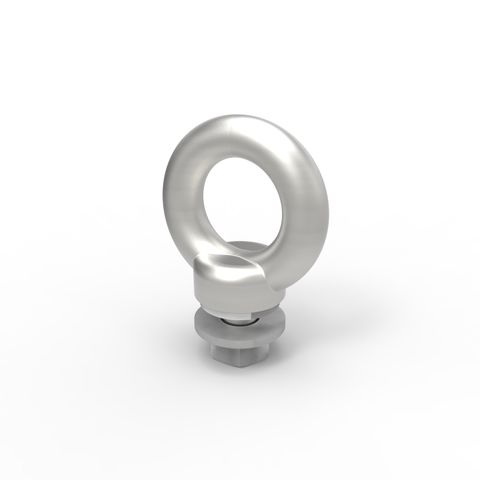

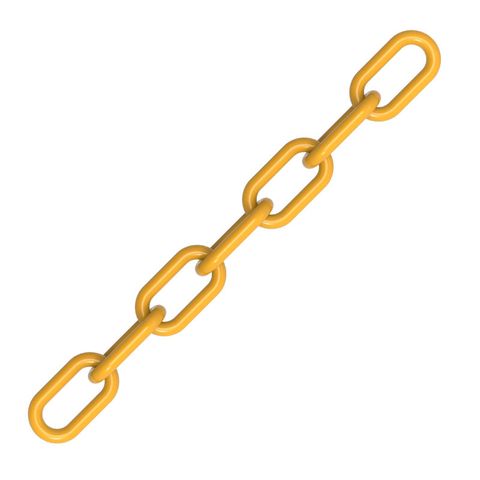

Optional chain rings are available for connecting chains or ropes. Chain ring-kits are sold as pairs and can also be purchased separately for retro fitting to existing bollards by drilling and tapping M10 threads as required.
Product Features:
- Economical alternative when heavy duty models are not necessary.
- Removable plastic moulded caps.
- Standard Class 1 Red reflective band.
- Fully welded heavy steel base plated models.
- Welded anchoring bars for fixing into concrete footing.
- Surface mount models supplied with fixings.
- Galvanised and powder coated or galvanised only.
- Optional chain ring kits are available for connecting chains or ropes to our bollards.
Request Quote
-
Round Bollards Economy Steel
1 to 16 of 16 results1 to 16 of 16 resultsAccessories
Accessories
1 to 5 of 5 results1 to 5 of 5 results -
Part No. Bollard Diameter Height above ground Depth below ground Wall thickness Base plate diameter Base plate thickness Kgs Finish C63SME-G 63 1000 – 1.6 150 6 3.7 HDG C63BGE-G 63 1000 200 1.6 – – 3.7 HDG C63SME 63 1000 – 1.6 150 6 3.7 HDG+PC C63BGE 63 1000 200 1.6 – – 3.7 HDG+PC C90SME-G 90 1000 – 3.2 200 6 8.2 HDG C90BGE-G 90 1000 300 3.2 – – 8.8 HDG C90SME 90 1000 – 3.2 200 6 8.2 HDG+PC C90BGE 90 1000 300 3.2 – – 8.8 HDG+PC C114SME-G 114 1000 – 3 250 6 11 HDG C114BGE-G 114 1000 300 3 – – 12.8 HDG C114SME 114 1000 – 3 250 6 11 HDG+PC C114BGE 114 1000 300 3 – – 12.8 HDG+PC C140SME-G 140 1200 – 3.5 250 8 18.4 HDG C140BGE-G 140 1200 300 3.5 – – 18.7 HDG C140SME 140 1200 – 3.5 250 8 18.4 HDG+PC C140BGE 140 1200 300 3.5 – – 18.7 HDG+PC Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC).
-
