Removable Bollards Surface Mount Cam-Lok
Heavy-duty surface mount removable bollards with a choice of premium or economy locking systems.

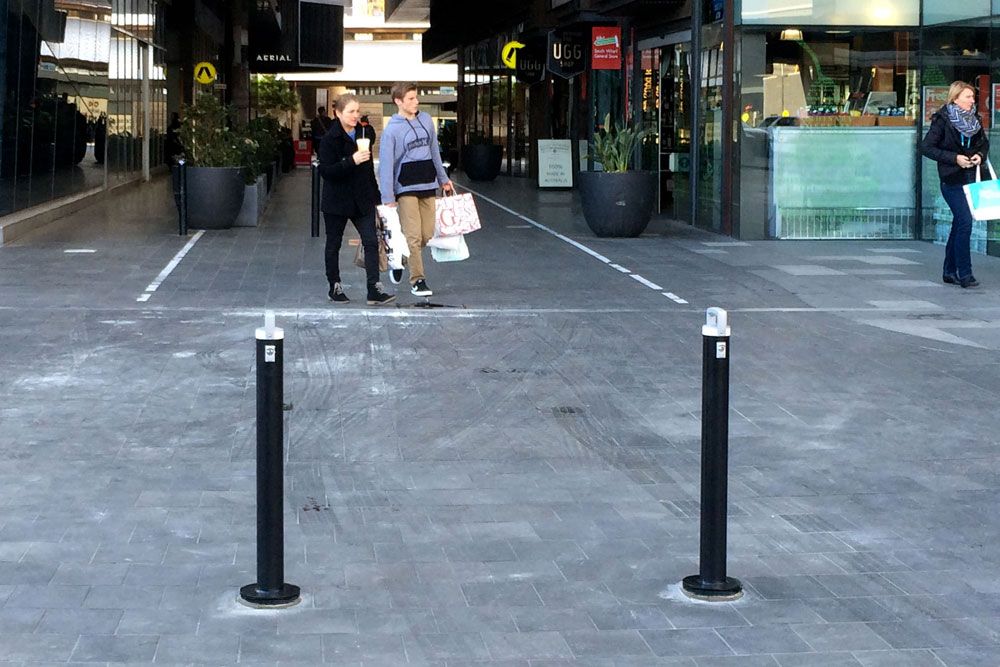

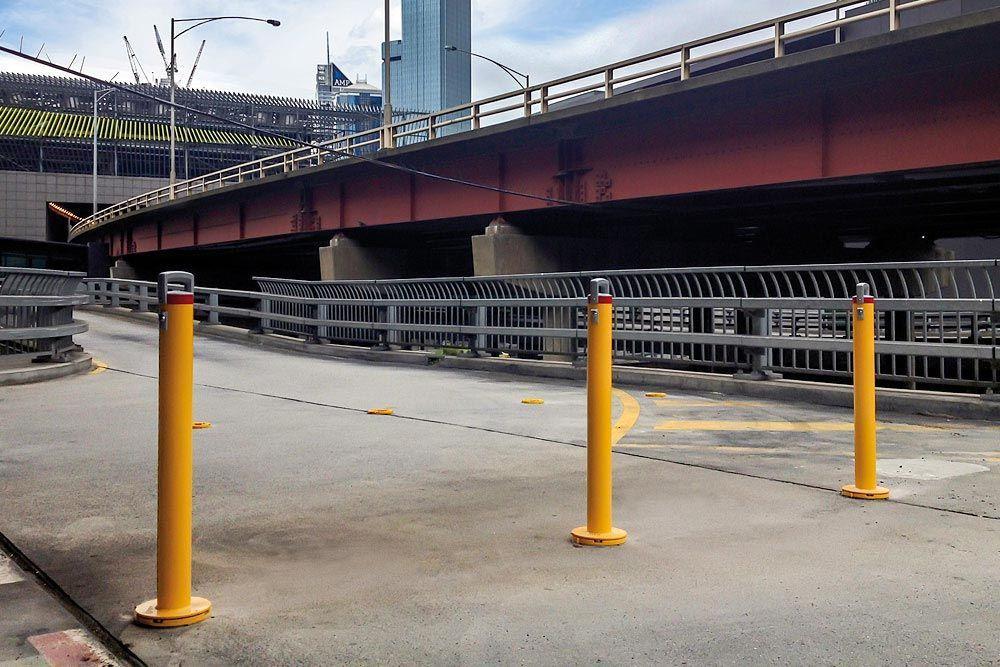

Surface mount removable bollards are designed for applications where the floor cannot be core drilled or penetrated, such as suspended, prestressed slabs or clean areas such as food preparation or pharmaceutical processing. They are available in two different models, the Cam-lok and the Tee-lok. Structurally both models are identical but offer different locking systems depending on the level of security required.

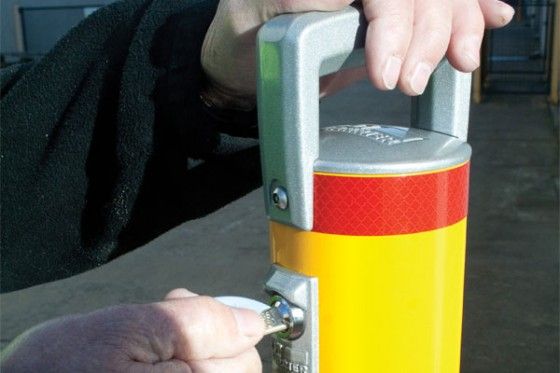

The Premium Cam-lok model is a heavy-duty bollard that locks into the surface mounted receiver shoe via an internal locking system which utilises a high security cam lock with registered keys. 2 keys are supplied per order. Additional keys may be purchased if required. Keys can be keyed alike or keyed different.
The Economy Cam-Lok model offers the same heavy-duty bollard specifications but with a basic lock and key system that is not aligned to a registered security database. These keys can only be duplicated by supplying the original key at time of cutting.

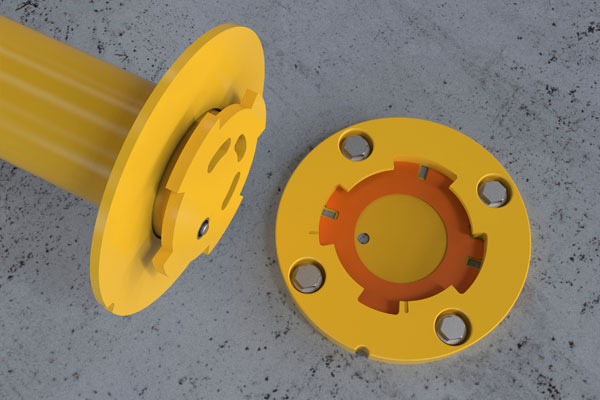

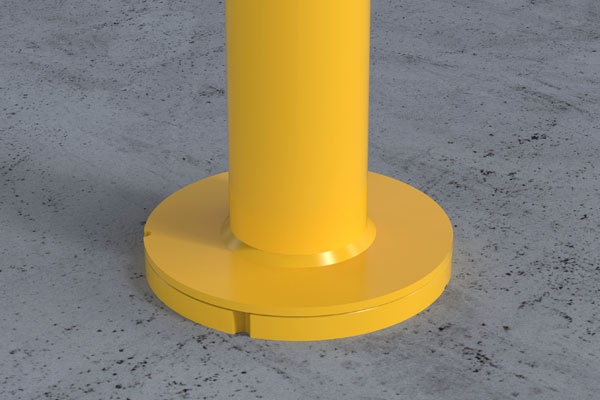

Bollards and receiver shoes are sold separately, and additional shoes may be purchased to use for storage purposes in an alternative location when the bollards are not in use. The fixing points within the bollard receiver shoe are not accessible when the bollard is in use, providing maximum security. Installation is simple and easy with the receiver shoe only requiring 4 x 12mm fixing holes drilled to 65mm deep.

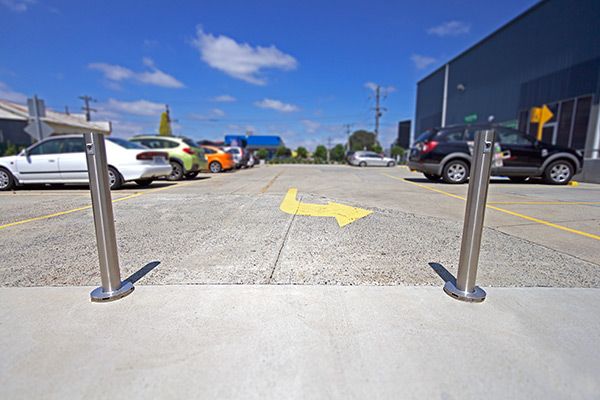

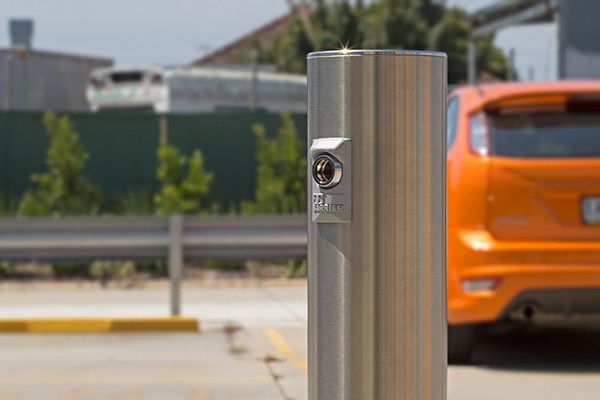

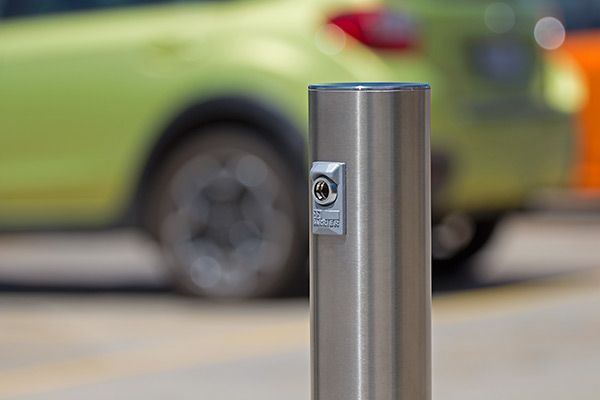

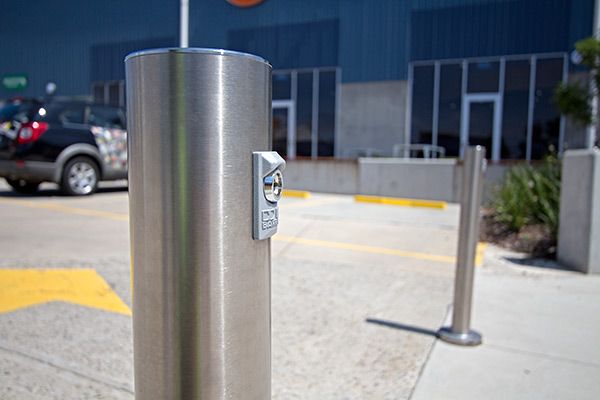

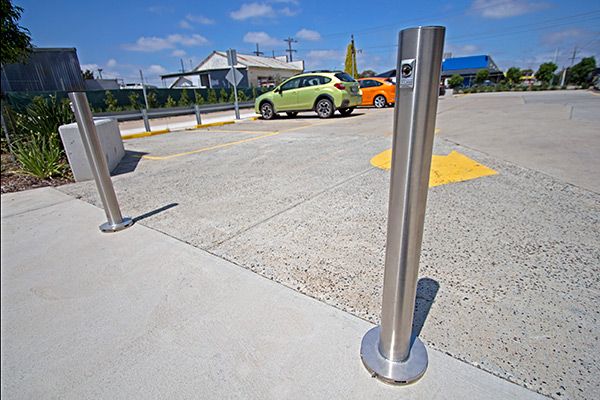

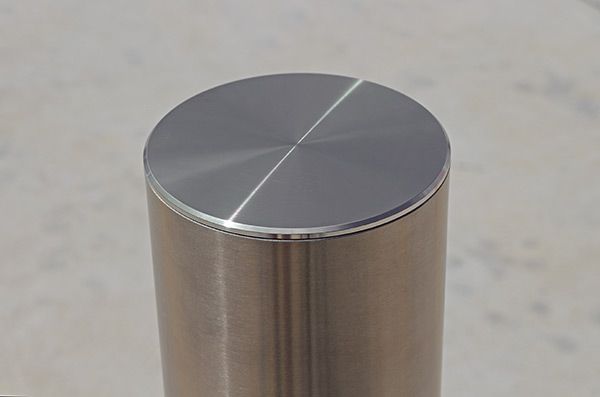

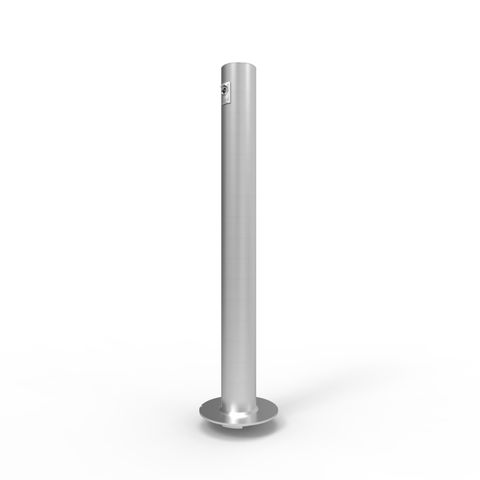

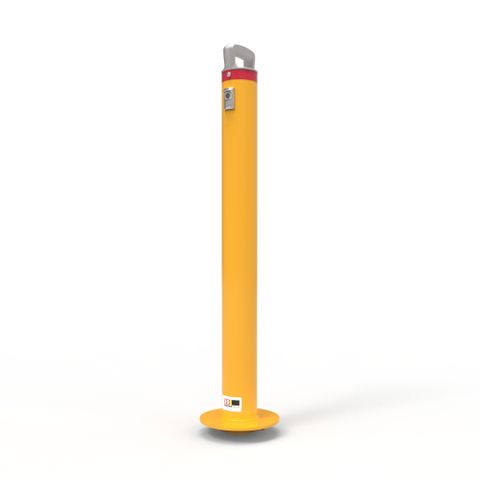

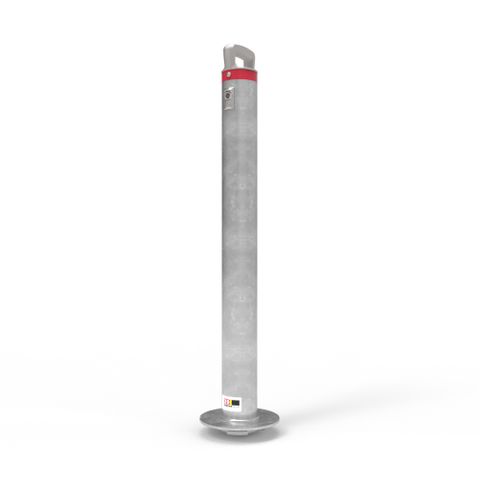

Bollards are available in plain galvanised finishes, a standard safety yellow powder coated finish or custom powder coated colours upon request. The sleek stainless steel version has a flat top with no handle.
Not sure if you need Premium or Economy bollards? Check the table below.
Features | Premium Lock Bollards |
Economy Lock Bollards |
---|---|---|
5mm Thick Wall - Powdercoat or Galvanised |
||
Powder Coated Aluminium Cap included |
||
Available in 3.4mm Stainless Steel |
||
Two keys supplied |
||
Available in keyed different |
||
Available in Keyed alike |
||
Registered Key |
||
Replacement keys can be cut without supplying key or lock |
||
Original key must be available for duplication |
||
Master keys available |
-
Removable Bollards Surface Mount Cam-Lok
1 to 6 of 6 results1 to 6 of 6 resultsReceiver Shoes
Removable Bollard Shoes
1 to 3 of 3 results1 to 3 of 3 results -
Part No. Bollard Diameter Bollard height Bollard wall thickness Base plate diameter Shoe height Kgs Finish SMCL* 90 950 5 200 20 12 HDG+PC SMCLE* 90 950 5 200 20 12 HDG+PC SMCL-G* 90 950 5 200 20 12 HDG SMCLE-G* 90 950 5 200 20 12 HDG SMCL-SS* 90 950 3.05 200 20 12 SS SMCLE-SS* 90 950 3.05 200 20 12 SS Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only, or Hot Dip Galvanised (HDG) & Powder Coated (PC), or 316 Stainless Steel (SS).
-
